Geospatial filters

Requests for multiple flow or incident objects require the in parameter to be provided, which specifies a geospatial filter defining a region in which the data will be returned.

📘

Note

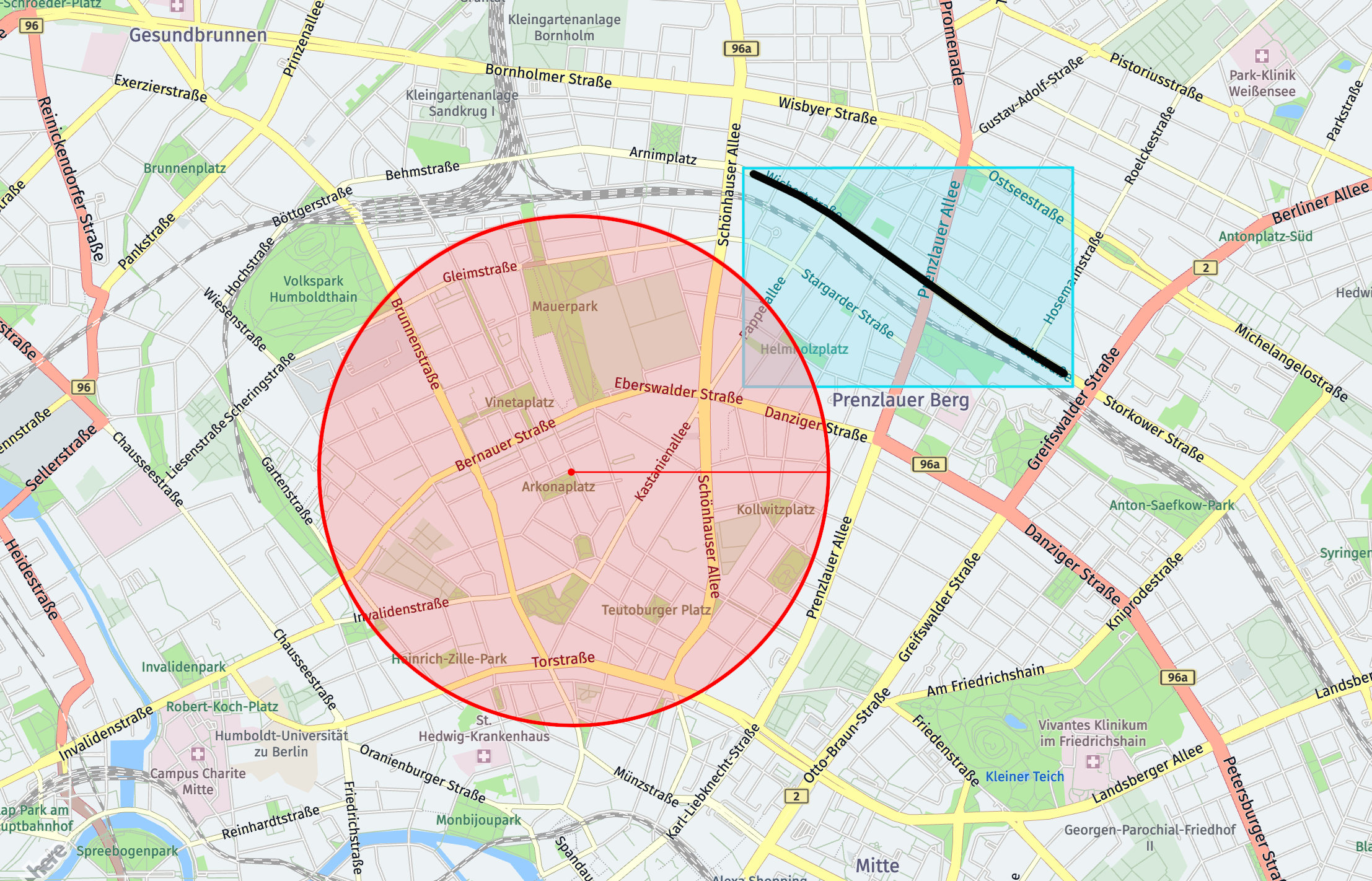

In some cases, the returned traffic event may not be strictly within the specified geospatial filter, but it will be very close. This is caused by the matching method between geospatial filter and traffic event. Each traffic event has a bounding box associated to include the locations which the traffic event covers. If there is any intersection between the bounding box of traffic event and the specified geospatial filter, the traffic event will be returned although it is not located in the specified geospatial filter. A graphical representation can be seen below.

A representation of the matching method between geospatial filter and traffic event

There are four different geospatial filter types that can be used:

  • Circle
  • Bounding box
  • Corridor
  • Topology Segment Reference

Data types

Below data types are used by listed geospatial filters.

  • latitude: decimal
  • longitude: decimal
  • radius: integer
  • polyline: string
  • refReplacements: string
  • segments: string

Circle

The circle geospatial filter is defined by a center point and a radius measured in meters. The center point must be provided as WGS84 coordinates.

📘

Note

The maximum radius permitted for a circle filter is 50 Km (50000 meters).

As URL parameter:

  • Format: in=circle:{latitude},{longitude};r={radius}
  • Example: in=circle:52.537675,13.40302;r=1000

As POST body:

  • Format:

    "in": {
    "type": "circle",
    "center": {"lat": {latitude}, "lng": {longitude}},
    "radius": {radius}
}

  • Example:

    "in": {
    "type": "circle",
    "center": {"lat": 52.537675, "lng": 13.40302},
    "radius": 1000
}

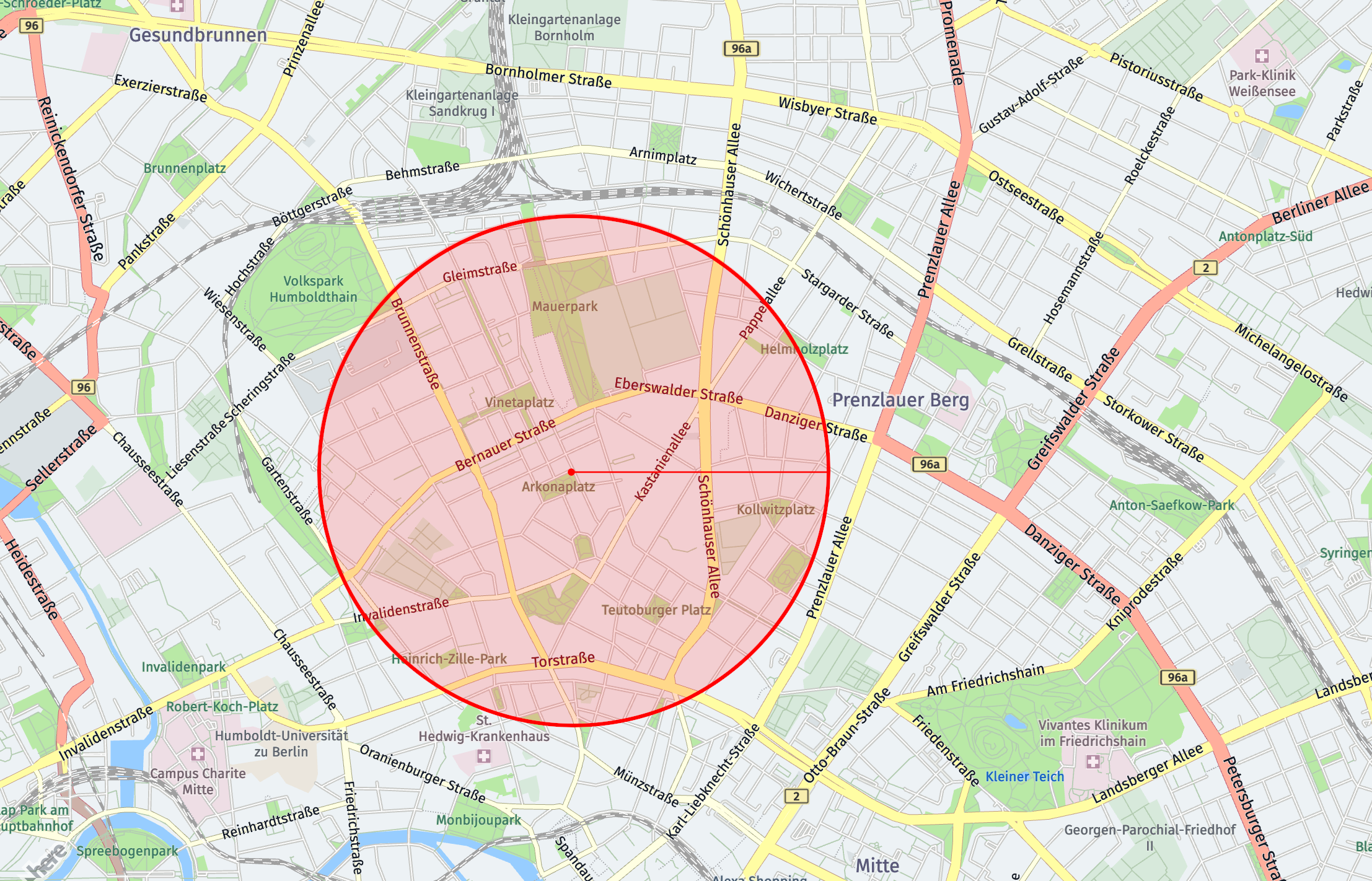

The example given above describes a circle centered on the coordinates 52.537675, 13.40302 with a radius of 1000 meters (1 kilometer). A graphical representation can be seen below. A representation of a circle filter laid over a map of Mitte, Berlin

Bounding box

The bounding box geospatial filter is defined by two longitude values and two latitude values. The format is specified below.

📘

Note

The maximum width and height for a bounding box filter is 1 degree.

As URL parameter:

  • Format: in=bbox:{west longitude},{south latitude},{east longitude},{north latitude}
  • Example: in=bbox:13.386969,52.527129,13.424134,52.549420

As POST body:

  • Format:

    "in": {
    "type": "bbox",
    "west": {west longitude},
    "south": {south latitude},
    "east": {east longitude},
    "north": {north latitude}
}

  • Example:

    "in": {
    "type": "bbox",
    "west": 13.386969,
    "south": 52.527129,
    "east": 13.424134,
    "north": 52.549420
}

The example given above describes a bounding box with the following limits:

  • Western limit at longitude 13.386969
  • Southern limit at latitude 52.527129
  • Eastern limit at longitude 13.424134
  • Northern limit at latitude 52.549420

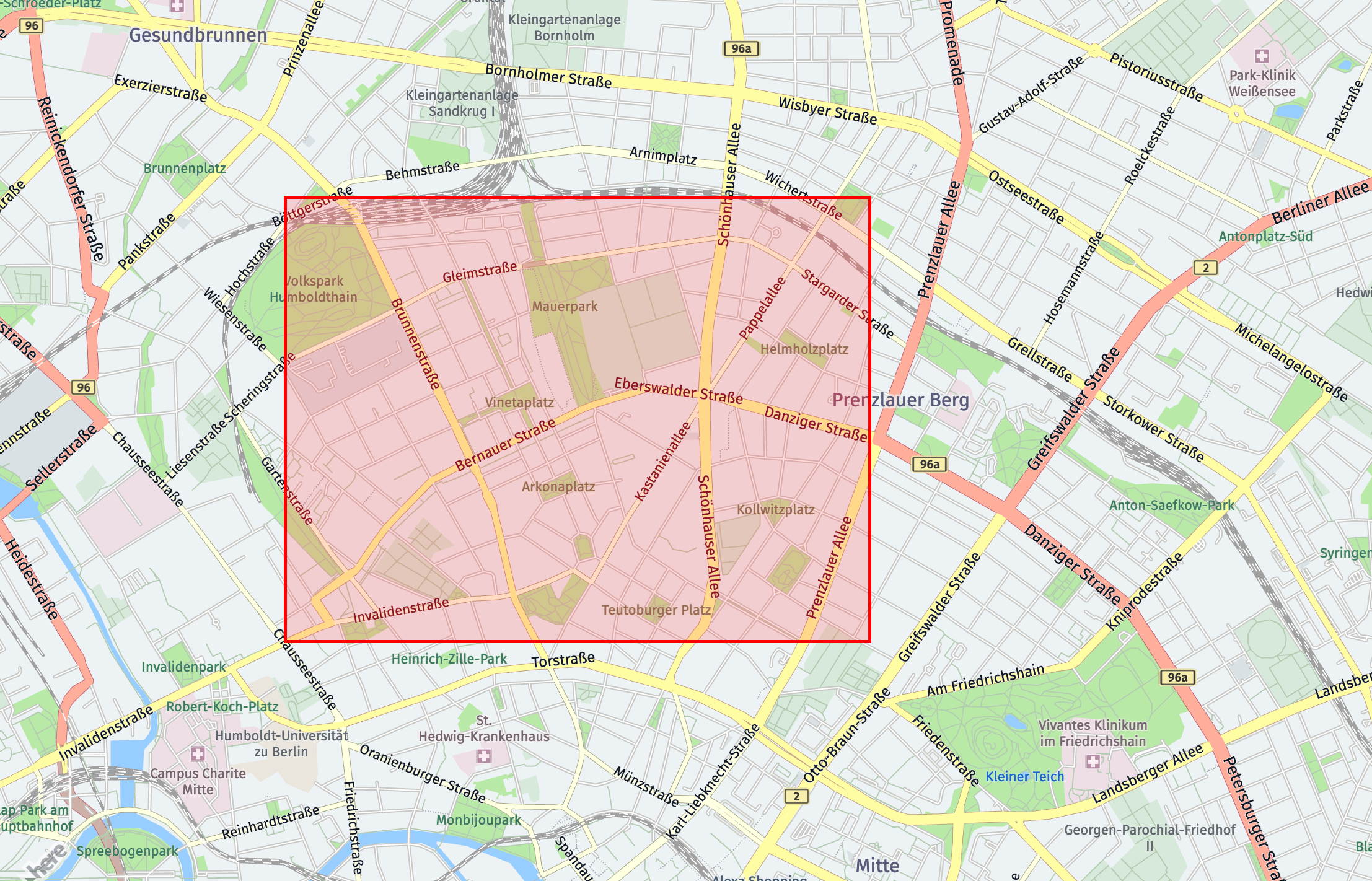

A graphical representation can be seen below. A representation of a bounding box filter laid over a map of Mitte, Berlin

Corridor

The corridor geospatial filter is defined by a list of two or more coordinates and a radius in meters. The coordinates are provided as a polyline in Flexible Polyline encoding. The radius is the distance on either side of the points forming the corridor, so the width of the corridor is twice the radius.

📘

Note

The maximum number of points for a corridor is 300, the maximum length for a corridor is 500 Km (500000 meters) and the maximum radius is 5 Km (5000 meters).

For long corridor with too large polyline string, POST method of HTTP request should be used to avoid exceeding URI length limit (i.e. 1000 characters).

As URL parameter:

  • Format: in=corridor:{polyline};r={radius}
  • Example: in=corridor:BG-6kmkDw1zwZqqG6xmBsgL5rGmwFgqZ_oEw1d;r=230

As POST body:

  • Format:

    "in": {
    "type": "corridor",
    "corridor": "{polyline}",
    "radius": {radius}
}

  • Example:

    "in": {
    "type": "corridor",
    "corridor": "BG-6kmkDw1zwZqqG6xmBsgL5rGmwFgqZ_oEw1d",
    "radius": 230
}

To create the example above, you must first define a corridor by the following 5 points:

  1. 52.529583, 13.379416
  2. 52.532820, 13.399157
  3. 52.538458, 13.395896
  4. 52.541277, 13.408856
  5. 52.539085, 13.424048

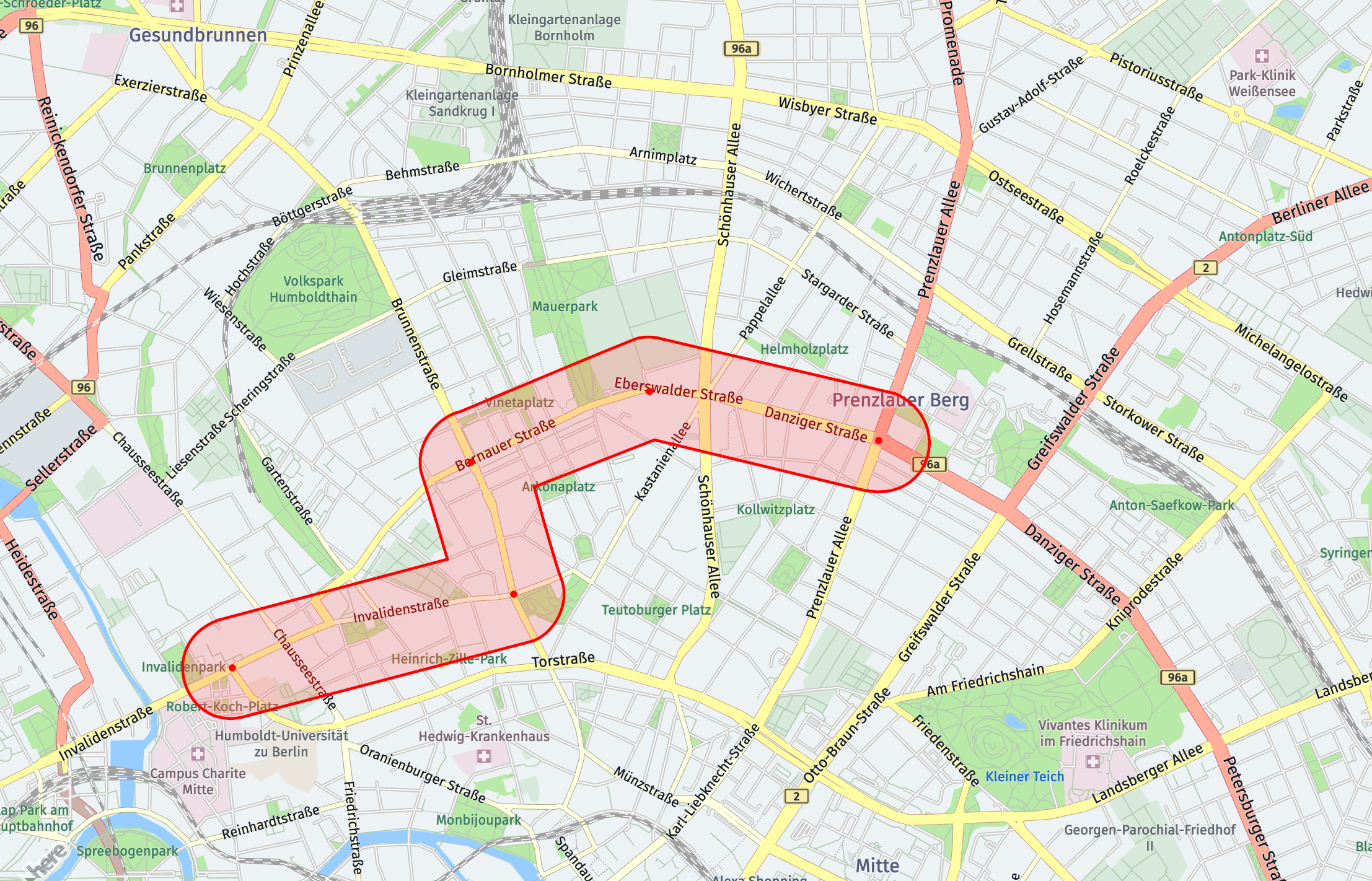

This corresponds to the Flexible Polyline BG-6kmkDw1zwZqqG6xmBsgL5rGmwFgqZ_oEw1d. The specified radius is 230 meters, and the distance from one side of the corridor to the other is 460 meters. A graphical representation can be seen below. A representation of a corridor filter laid over a map of Mitte, Berlin

Topology segment reference

The topology segment reference geospatial filter is defined by a series of segment references, with optional reference replacements. Segment references specify the exact road segments to include in the filter. The reference replacements is optional parameter, used for the compact representation of the topology segment references.

📘

Note

The maximum number of supported segment references is 100. Additionally, the URI length for GET requests is limited to 2000 characters.

As URL parameter:

  • Format: in=segmentRef:{segment refs};rr={refReplacements}
  • Example: in=segmentRef:$0::377894440:$1:190307851#-0..1,$0::377894440:$1:99994475#+0..1,$0::377894440:$1:484412450#+0..1,$0::377894441:$1:144195424#+0..1,$0::377894441:$1:207551710#-0..1,$0::377894441:$1:76771992#+0..1,$0::377894441:$1:487984106#+0..1,$0::377894441:$1:487970484#+0..1,$0::377894441:$1:86785295#+0..1,$0::377894441:$1:531360041#+0..1,$0::377894441:$1:89123581#+0..1,$0::377894441:$1:531389452#+0..1,$0::377894441:$1:859836198#-0..1,$0::377894441:$1:859837047#+0..1,$0::377894441:$1:859838073#+0..1,$0::377894441:$1:859837508#-0..1,$0::377894441:$1:179812597#+0..1,$0::377894441:$1:105842781#+0..1,$0::377894441:$1:104623676#+0..1,$0::377894441:$1:104623677#+0..1,$0::377894441:$1:104623674#+0..1,$0::377894441:$1:192254744#-0..1,$0::377894441:$1:484433488#+0..1,$0::377894441:$1:78865338#+0..0.12233102324472997,$0::377894441:$1:78865338#+0.12233102301189933..1,$0::377894441:$1:105961077#+0..1,$0::377894441:$1:102089406#+0..1,$0::377894441:$1:102089407#+0..1,$0::377894443:$1:95507280#+0..1,$0::377894443:$1:98357361#+0..1,$0::377894443:$1:77041562#+0..1,$0::377894443:$1:94423640#+0..1;rr=hrn:here:data::olp-here:rib-2:7334,here:cm:segment

As POST body:

  • Format:


"in": {
    "type": "segmentRef",
    "refReplacements": {string},
    "segments": [string]
}

  • Example:


"in": {
    "type": "segmentRef",
    "useRefReplacements": true,
    "refReplacements": {
        "0": "hrn:here:data::olp-here:rib-2:7334",
        "1": "here:cm:segment"
    },
    "segments": [
        {"ref": "$0::377894440:$1:190307851#-0..1"},
        {"ref": "$0::377894440:$1:99994475#+0..1"},
        {"ref": "$0::377894440:$1:484412450#+0..1"},
        {"ref": "$0::377894441:$1:144195424#+0..1"},
        {"ref": "$0::377894441:$1:207551710#-0..1"},
        {"ref": "$0::377894441:$1:76771992#+0..1"},
        {"ref": "$0::377894441:$1:487984106#+0..1"},
        {"ref": "$0::377894441:$1:487970484#+0..1"},
        {"ref": "$0::377894441:$1:86785295#+0..1"},
        {"ref": "$0::377894441:$1:531360041#+0..1"},
        {"ref": "$0::377894441:$1:89123581#+0..1"},
        {"ref": "$0::377894441:$1:531389452#+0..1"},
        {"ref": "$0::377894441:$1:859836198#-0..1"},
        {"ref": "$0::377894441:$1:859837047#+0..1"},
        {"ref": "$0::377894441:$1:859838073#+0..1"},
        {"ref": "$0::377894441:$1:859837508#-0..1"},
        {"ref": "$0::377894441:$1:179812597#+0..1"},
        {"ref": "$0::377894441:$1:105842781#+0..1"},
        {"ref": "$0::377894441:$1:104623676#+0..1"},
        {"ref": "$0::377894441:$1:104623677#+0..1"},
        {"ref": "$0::377894441:$1:104623674#+0..1"},
        {"ref": "$0::377894441:$1:192254744#-0..1"},
        {"ref": "$0::377894441:$1:484433488#+0..1"},
        {"ref": "$0::377894441:$1:78865338#+0..0.12233102324472997"},
        {"ref": "$0::377894441:$1:78865338#+0.12233102301189933..1"},
        {"ref": "$0::377894441:$1:105961077#+0..1"},
        {"ref": "$0::377894441:$1:102089406#+0..1"},
        {"ref": "$0::377894441:$1:102089407#+0..1"},
        {"ref": "$0::377894443:$1:95507280#+0..1"},
        {"ref": "$0::377894443:$1:98357361#+0..1"},
        {"ref": "$0::377894443:$1:77041562#+0..1"},
        {"ref": "$0::377894443:$1:94423640#+0..1"}
    ]
}

To create the example above, the series of topology segment references may be obtained by making a routing API call. The following endpoint can be used to retrieve segment references along a specified route: Routing API

From the response, the list of segment references can be extracted from the span objects along the route.

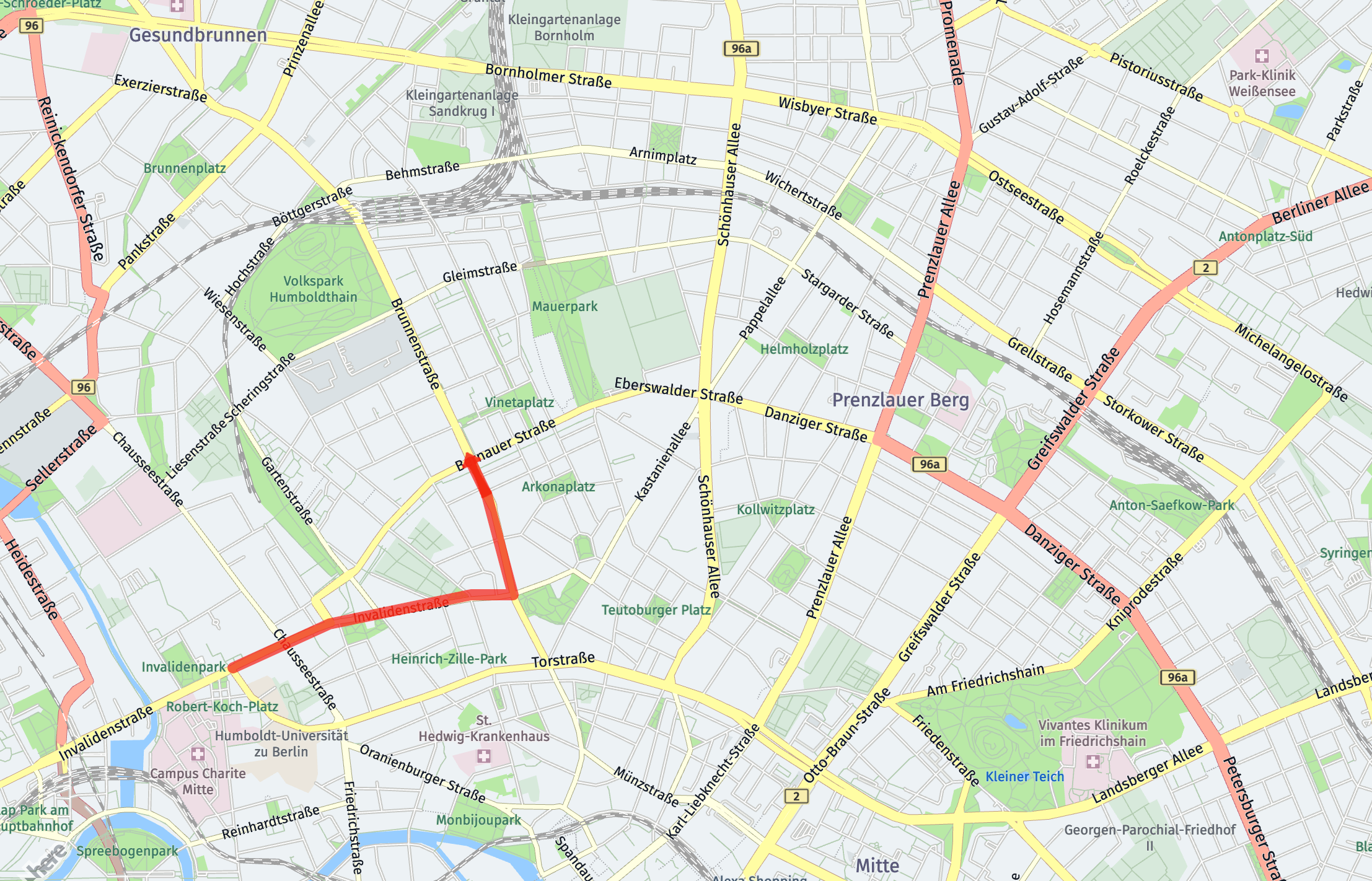

A graphical representation can be seen below. A representation of a topology segment reference filter laid over a map of Mitte, Berlin
