How to calculate a matrix in Profile mode

The following tutorial provides an example of a 7 x 7 matrix request with these origins and destinations:

Berlin at (52.54, 13.40)
Kyiv at (50.43, 30.52)
London at (51.50, -0.08)
Madrid at (40.40, -3.68)
Moscow at (55.75, 37.60)
Paris at (48.87, 2.33)
Rome at (41.90, 12.48)

To calculate a car distance matrix, you can use the request below. Since the request does not specify the destinations array, the origins are taken as destinations and the resulting matrix is a 7 x 7 matrix.

The region definition is the special variant world. In the request, we use the profile carFast which uses transport mode car and optimizes the route calculations for travel time.

By default, the service calculates a travel times matrix, but since we want to get distances in the response instead of times, the request specifies the matrixAttributes property with the value distances.

{
    "origins": [
        { "lat": 52.54, "lng": 13.40 },
        { "lat": 50.43, "lng": 30.52 },
        { "lat": 51.50, "lng": -0.08 },
        { "lat": 40.40, "lng": -3.68 },
        { "lat": 55.75, "lng": 37.60 },
        { "lat": 48.87, "lng":  2.33 },
        { "lat": 41.90, "lng": 12.48 }
    ],
    "profile": "carFast",
    "regionDefinition": {
        "type": "world"
    },
    "matrixAttributes": ["distances"]
}

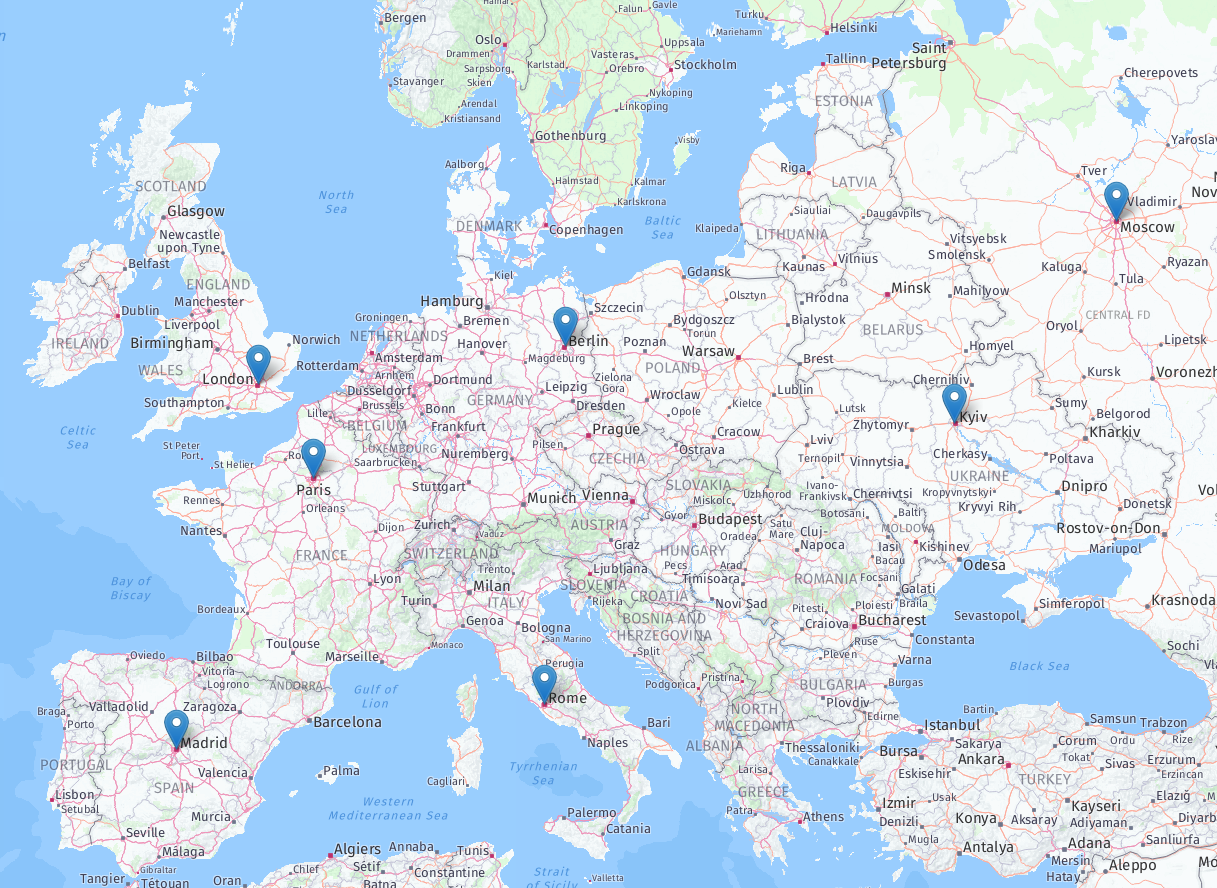

Visualized, it looks as follows: Matrix request in Europe The full procedure of submitting a matrix request is described in the Get started with HERE Matrix Routing API v8 section. The response looks as follows:

{
    "matrixId": "d68e214a-52f7-4b67-858a-d67935cce61b",
    "matrix": {
        "numOrigins": 7,
        "numDestinations": 7,
        "distances": [
            0, 1360978, 1093439, 2319223, 1836226, 1052278, 1508389,
            1346659, 0, 2395659, 3621443, 853752, 2354498, 2445588,
            1101711, 2404221, 0, 1719756, 2879469, 456781, 1838456,
            2317959, 3620469, 1711156, 0, 4095717, 1271140, 1961961,
            1823692, 851480, 2872692, 4098476, 0, 2831531, 3054079,
            1051198, 2353708, 452120, 1272365, 2828956, 0, 1426684,
            1507836, 2441104, 1832407, 1963512, 3049976, 1424346, 0
        ]
    },
    "regionDefinition": {
        "type": "world"
    }
}

The response corresponds to this matrix with entries in meters:

orig\dest	1	2	3	4	5	6	7
1	0	1360978	1093439	2319223	1836226	1052278	1508389
2	1346659	0	2395659	3621443	853752	2354498	2445588
3	1101711	2404221	0	1719756	2879469	456781	1838456
4	2317959	3620469	1711156	0	4095717	1271140	1961961
5	1823692	851480	2872692	4098476	0	2831531	3054079
6	1051198	2353708	452120	1272365	2828956	0	1426684
7	1507836	2441104	1832407	1963512	3049976	1424346	0
