Schematic map view
The schematic map view displays map features as a diagram instead of as a geographic map. Each diagram contains map elements for the available styling categories in a feature type. This view helps you review a style's visual system without the geographic detail of the main map.
Use the schematic map view to:
- Explore how styles vary across combinations of feature attributes.
- Find missing, inconsistent, or difficult-to-distinguish styling.
- Compare visual variables, such as color, size, hue, saturation, value (HSV), shape, and texture.
- Refine style concepts and document the visual design of a map.
Use schematic map view to catch and fix styling issues before exporting your custom map!
The supported schematic map diagrams are:
- Land-use types
- Land-use types overlapped with a representative collection of road types
- Land-use types from Japan data
- Land-use types from Japan data overlapped with a representative collection of road types
- POIs
The diagrams show representative map elements for each supported category. They are intended for reviewing style coverage and visual relationships. They do not, however, represent the location or density of features in a particular geographic area.
Controlling schematic map
Use the map view controls to turn on the schematic map view and select the diagram you want to review. You can exit the view at any time to return to the main map.

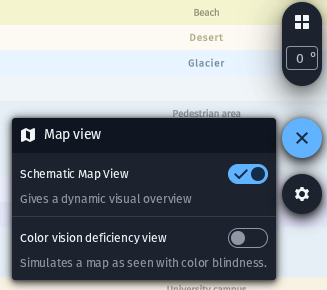

Enable schematic map
The feature can be toggled on and off from the map view controls.

Schematic map settings
The Schematic Map View settings popup has a dropdown control for selecting the map type to view. The Exit View button exits the schematic map state, restoring the full main map view back into the map viewport.
Review a style with the schematic map view
- Open a style in the HERE Style Editor.
- In the map view controls, select the schematic map view.
- Select a diagram from the map type list.
- Compare related categories and check that their visual variables communicate the intended hierarchy.
- Return to the main map view, update the relevant style attributes, and repeat the review.
Example: evaluate land-use styling
To evaluate land-use styling, open the land-use diagram and compare the park, forest, and residential categories. Verify the following:
- Parks and forests use related colors without appearing identical.
- Residential areas remain visually distinct from green areas.
- Category differences remain visible at the intended zoom levels.
If the park and forest categories are insufficiently distinguishable, update their colors or another visual variable in the style. Reopen the land-use diagram to confirm that the change improves the distinction without reducing consistency with related categories. Then verify the result on the main map at a representative location.
