Plan efficient routes for waste management fleets
Efficient tour planning can provide significant benefits to multiple types of industries, including the waste management industry. Optimizing routes for waste collection vehicles minimizes fuel consumption, reduces travel time, and lowers vehicle wear and tear.
The following sections address problems and provide corresponding solutions tailored to tour planning use cases related to managing waste management fleets.
In general, all presented problems follow these objectives:
- Trucks must collect all bins along their route. When a truck becomes full, it must travel to a designated dumping site to unload.
- Dumping sites are added as reload locations. The dumping process has a fixed duration. When a truck is full, it goes to the reload location to empty its load, then resume bin pickups.
- At the end of their routes, trucks must finish their shift at a dumping site to offload any remaining rubbish. In summary, trucks leave the depot empty and must return empty after completing the assigned tasks.

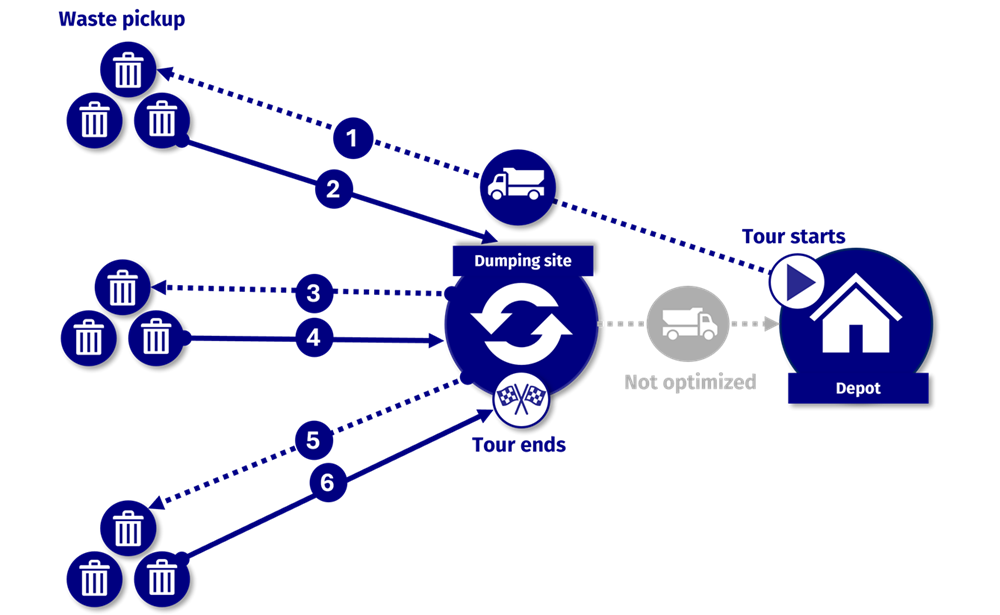

The following figure provides a visual overview of these objectives:
Option #1: Define the dumping site as the shift end location
In the following problem, the reload location coordinates match the coordinates for the shift end. This ensures that waste collection trucks dump any remaining trash at the end of the tour, before proceeding to the depot empty, as required.
Marking the dumping site as the location for the shift end means that the final part of the tour (from the dumping site to the depot) is not optimized. To account for the travel between the dumping site and the depot after the tour has been completed, the vehicle shift time is reduced from 8 hours to 7 hours and 30 minutes. The final trip from the dumping site to the depot is a static segment and is not included in the optimization.
In addition, the sample problem also includes the following specifications:
- The fleet consists of a single vehicle type for which
3vehicles are available - Each vehicle has the capacity value of
30 - The tour plan includes
15pickup jobs, each with the demand set to10 - The problem includes an advanced objective to minimize tour overlap in case multiple vehicles are involved.
- The vehicle routing profile includes a constraint to avoid u-turns to account for the larger turning radius of trucks, as compared to cars, as well as a speed cap of 20 km/h.
The following section contains the full problem JSON:
Click to expand/collapse the sample JSON
{
"configuration": {
"experimentalFeatures": ["advancedObjectives"]
},
"fleet": {
"types": [
{
"id": "garbage_truck",
"profile": "truck",
"costs": {
"fixed": 5,
"distance": 0,
"time": 0.005
},
"shifts": [
{
"start": {
"time": "2023-05-28T08:00:00Z",
"location": {
"lat": 52.50935,
"lng": 13.41997
}
},
"end": {
"time": "2023-05-28T15:30:00Z",
"location": {
"lat": 52.488148,
"lng": 13.369797
}
},
"reloads": [
{
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"duration": 600
}
]
}
],
"capacity": [30],
"amount": 3
}
],
"profiles": [
{
"name": "truck",
"type": "truck",
"avoid": {
"features": ["uTurns"]
},
"options": {
"speedCap": 20
}
}
]
},
"plan": {
"jobs": [
{
"id": "Job_1",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.56182,
"lng": 13.497167
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_2",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.534553,
"lng": 13.519429
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_3",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.482275,
"lng": 13.502456
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_4",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.473537,
"lng": 13.505414
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_5",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.463341,
"lng": 13.49061
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_6",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.434003,
"lng": 13.466142
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_7",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.447476,
"lng": 13.433062
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_8",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.458414,
"lng": 13.392079
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_9",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.446407,
"lng": 13.36047
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_10",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.440807,
"lng": 13.351399
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_11",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.462867,
"lng": 13.342188
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_12",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.458232,
"lng": 13.338698
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_13",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.457629,
"lng": 13.323742
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_14",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.552057,
"lng": 13.349613
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_15",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.447377,
"lng": 13.363822
},
"duration": 600
}
],
"demand": [10]
}
]
}
}
]
},
"advancedObjectives": [
[
{
"type": "minimizeUnassigned"
}
],
[
{
"type": "minimizeCost"
}
],
[
{
"type": "minimizeTourOverlap"
}
]
]

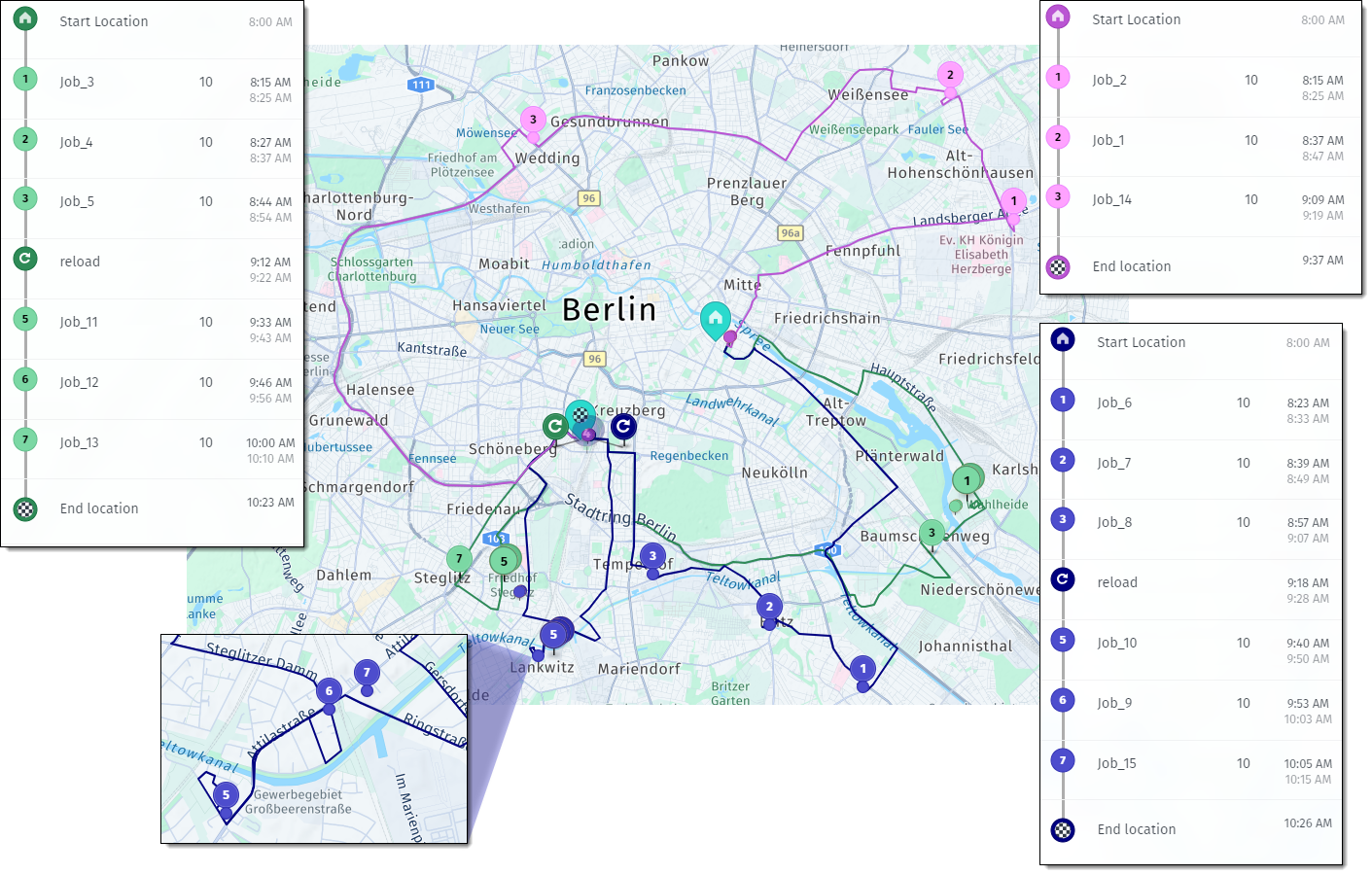

}Solution
The following section provides the full solution of the previous problem:
Click to expand/collapse the sample JSON
{
"statistic": {
"cost": 131.365,
"distance": 115071,
"duration": 23273,
"times": {
"driving": 13073,
"serving": 10200,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"tours": [
{
"vehicleId": "garbage_truck_1",
"typeId": "garbage_truck",
"stops": [
{
"time": {
"arrival": "2023-05-28T08:00:00Z",
"departure": "2023-05-28T08:00:00Z"
},
"load": [0],
"activities": [
{
"jobId": "departure",
"type": "departure",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T08:00:00Z",
"end": "2023-05-28T08:00:00Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 0
},
{
"time": {
"arrival": "2023-05-28T08:15:48Z",
"departure": "2023-05-28T08:25:48Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_3",
"type": "pickup",
"location": {
"lat": 52.482275,
"lng": 13.502456
},
"time": {
"start": "2023-05-28T08:15:48Z",
"end": "2023-05-28T08:25:48Z"
}
}
],
"location": {
"lat": 52.482275,
"lng": 13.502456
},
"distance": 8425
},
{
"time": {
"arrival": "2023-05-28T08:27:48Z",
"departure": "2023-05-28T08:37:48Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_4",
"type": "pickup",
"location": {
"lat": 52.473537,
"lng": 13.505414
},
"time": {
"start": "2023-05-28T08:27:48Z",
"end": "2023-05-28T08:37:48Z"
}
}
],
"location": {
"lat": 52.473537,
"lng": 13.505414
},
"distance": 9711
},
{
"time": {
"arrival": "2023-05-28T08:44:40Z",
"departure": "2023-05-28T08:54:40Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_5",
"type": "pickup",
"location": {
"lat": 52.463341,
"lng": 13.49061
},
"time": {
"start": "2023-05-28T08:44:40Z",
"end": "2023-05-28T08:54:40Z"
}
}
],
"location": {
"lat": 52.463341,
"lng": 13.49061
},
"distance": 12652
},
{
"time": {
"arrival": "2023-05-28T09:12:49Z",
"departure": "2023-05-28T09:22:49Z"
},
"load": [0],
"activities": [
{
"jobId": "reload",
"type": "reload",
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"time": {
"start": "2023-05-28T09:12:49Z",
"end": "2023-05-28T09:22:49Z"
}
}
],
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"distance": 24881
},
{
"time": {
"arrival": "2023-05-28T09:33:03Z",
"departure": "2023-05-28T09:43:03Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_11",
"type": "pickup",
"location": {
"lat": 52.462867,
"lng": 13.342188
},
"time": {
"start": "2023-05-28T09:33:03Z",
"end": "2023-05-28T09:43:03Z"
}
}
],
"location": {
"lat": 52.462867,
"lng": 13.342188
},
"distance": 30463
},
{
"time": {
"arrival": "2023-05-28T09:46:08Z",
"departure": "2023-05-28T09:56:08Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_12",
"type": "pickup",
"location": {
"lat": 52.458232,
"lng": 13.338698
},
"time": {
"start": "2023-05-28T09:46:08Z",
"end": "2023-05-28T09:56:08Z"
}
}
],
"location": {
"lat": 52.458232,
"lng": 13.338698
},
"distance": 31674
},
{
"time": {
"arrival": "2023-05-28T10:00:35Z",
"departure": "2023-05-28T10:10:35Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_13",
"type": "pickup",
"location": {
"lat": 52.457629,
"lng": 13.323742
},
"time": {
"start": "2023-05-28T10:00:35Z",
"end": "2023-05-28T10:10:35Z"
}
}
],
"location": {
"lat": 52.457629,
"lng": 13.323742
},
"distance": 33821
},
{
"time": {
"arrival": "2023-05-28T10:23:15Z",
"departure": "2023-05-28T10:23:15Z"
},
"load": [0],
"activities": [
{
"jobId": "arrival",
"type": "arrival",
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"time": {
"start": "2023-05-28T10:23:15Z",
"end": "2023-05-28T10:23:15Z"
}
}
],
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"distance": 40870
}
],
"statistic": {
"cost": 47.975,
"distance": 40870,
"duration": 8595,
"times": {
"driving": 4395,
"serving": 4200,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"shiftIndex": 0
},
{
"vehicleId": "garbage_truck_2",
"typeId": "garbage_truck",
"stops": [
{
"time": {
"arrival": "2023-05-28T08:00:00Z",
"departure": "2023-05-28T08:00:00Z"
},
"load": [0],
"activities": [
{
"jobId": "departure",
"type": "departure",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T08:00:00Z",
"end": "2023-05-28T08:00:00Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 0
},
{
"time": {
"arrival": "2023-05-28T08:23:27Z",
"departure": "2023-05-28T08:33:27Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_6",
"type": "pickup",
"location": {
"lat": 52.434003,
"lng": 13.466142
},
"time": {
"start": "2023-05-28T08:23:27Z",
"end": "2023-05-28T08:33:27Z"
}
}
],
"location": {
"lat": 52.434003,
"lng": 13.466142
},
"distance": 12952
},
{
"time": {
"arrival": "2023-05-28T08:39:51Z",
"departure": "2023-05-28T08:49:51Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_7",
"type": "pickup",
"location": {
"lat": 52.447476,
"lng": 13.433062
},
"time": {
"start": "2023-05-28T08:39:51Z",
"end": "2023-05-28T08:49:51Z"
}
}
],
"location": {
"lat": 52.447476,
"lng": 13.433062
},
"distance": 16481
},
{
"time": {
"arrival": "2023-05-28T08:57:03Z",
"departure": "2023-05-28T09:07:03Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_8",
"type": "pickup",
"location": {
"lat": 52.458414,
"lng": 13.392079
},
"time": {
"start": "2023-05-28T08:57:03Z",
"end": "2023-05-28T09:07:03Z"
}
}
],
"location": {
"lat": 52.458414,
"lng": 13.392079
},
"distance": 20505
},
{
"time": {
"arrival": "2023-05-28T09:18:07Z",
"departure": "2023-05-28T09:28:07Z"
},
"load": [0],
"activities": [
{
"jobId": "reload",
"type": "reload",
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"time": {
"start": "2023-05-28T09:18:07Z",
"end": "2023-05-28T09:28:07Z"
}
}
],
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"distance": 25910
},
{
"time": {
"arrival": "2023-05-28T09:40:27Z",
"departure": "2023-05-28T09:50:27Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_10",
"type": "pickup",
"location": {
"lat": 52.440807,
"lng": 13.351399
},
"time": {
"start": "2023-05-28T09:40:27Z",
"end": "2023-05-28T09:50:27Z"
}
}
],
"location": {
"lat": 52.440807,
"lng": 13.351399
},
"distance": 32474
},
{
"time": {
"arrival": "2023-05-28T09:53:00Z",
"departure": "2023-05-28T10:03:00Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_9",
"type": "pickup",
"location": {
"lat": 52.446407,
"lng": 13.36047
},
"time": {
"start": "2023-05-28T09:53:00Z",
"end": "2023-05-28T10:03:00Z"
}
}
],
"location": {
"lat": 52.446407,
"lng": 13.36047
},
"distance": 33568
},
{
"time": {
"arrival": "2023-05-28T10:05:57Z",
"departure": "2023-05-28T10:15:57Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_15",
"type": "pickup",
"location": {
"lat": 52.447377,
"lng": 13.363822
},
"time": {
"start": "2023-05-28T10:05:57Z",
"end": "2023-05-28T10:15:57Z"
}
}
],
"location": {
"lat": 52.447377,
"lng": 13.363822
},
"distance": 34587
},
{
"time": {
"arrival": "2023-05-28T10:26:54Z",
"departure": "2023-05-28T10:26:54Z"
},
"load": [0],
"activities": [
{
"jobId": "arrival",
"type": "arrival",
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"time": {
"start": "2023-05-28T10:26:54Z",
"end": "2023-05-28T10:26:54Z"
}
}
],
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"distance": 40083
}
],
"statistic": {
"cost": 49.07,
"distance": 40083,
"duration": 8814,
"times": {
"driving": 4614,
"serving": 4200,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"shiftIndex": 0
},
{
"vehicleId": "garbage_truck_3",
"typeId": "garbage_truck",
"stops": [
{
"time": {
"arrival": "2023-05-28T08:00:00Z",
"departure": "2023-05-28T08:00:00Z"
},
"load": [0],
"activities": [
{
"jobId": "departure",
"type": "departure",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T08:00:00Z",
"end": "2023-05-28T08:00:00Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 0
},
{
"time": {
"arrival": "2023-05-28T08:15:10Z",
"departure": "2023-05-28T08:25:10Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_2",
"type": "pickup",
"location": {
"lat": 52.534553,
"lng": 13.519429
},
"time": {
"start": "2023-05-28T08:15:10Z",
"end": "2023-05-28T08:25:10Z"
}
}
],
"location": {
"lat": 52.534553,
"lng": 13.519429
},
"distance": 8613
},
{
"time": {
"arrival": "2023-05-28T08:37:10Z",
"departure": "2023-05-28T08:47:10Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_1",
"type": "pickup",
"location": {
"lat": 52.56182,
"lng": 13.497167
},
"time": {
"start": "2023-05-28T08:37:10Z",
"end": "2023-05-28T08:47:10Z"
}
}
],
"location": {
"lat": 52.56182,
"lng": 13.497167
},
"distance": 13256
},
{
"time": {
"arrival": "2023-05-28T09:09:10Z",
"departure": "2023-05-28T09:19:10Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_14",
"type": "pickup",
"location": {
"lat": 52.552057,
"lng": 13.349613
},
"time": {
"start": "2023-05-28T09:09:10Z",
"end": "2023-05-28T09:19:10Z"
}
}
],
"location": {
"lat": 52.552057,
"lng": 13.349613
},
"distance": 25022
},
{
"time": {
"arrival": "2023-05-28T09:37:44Z",
"departure": "2023-05-28T09:37:44Z"
},
"load": [0],
"activities": [
{
"jobId": "arrival",
"type": "arrival",
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"time": {
"start": "2023-05-28T09:37:44Z",
"end": "2023-05-28T09:37:44Z"
}
}
],
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"distance": 34118
}
],
"statistic": {
"cost": 34.32,
"distance": 34118,
"duration": 5864,
"times": {
"driving": 4064,
"serving": 1800,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"shiftIndex": 0
}
]
}As the solution demonstrates, the optimization completed all assigned jobs, distributing them among three vehicles (garbage_truck_1, garbage_truck_2, garbage_truck_3). The following figure provides a visual breakdown of the tour:

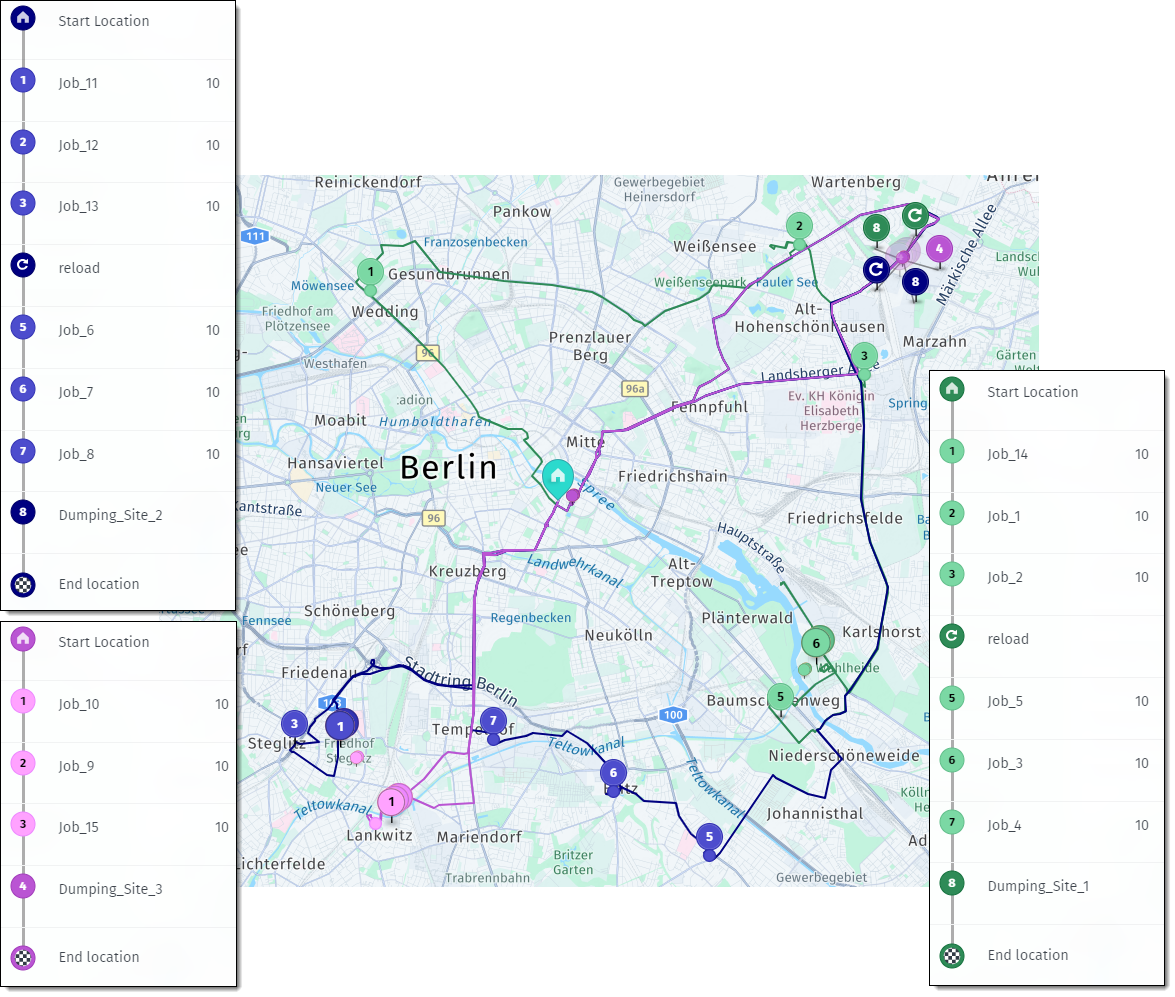

In this tour, both garbage_truck_1 (marked in green) and garbage_truck_2 (marked in blue) completed 7 tasks. These tasks included one reload at the dumping site. After collecting trash following the reload, both trucks returned to the dumping site to unload and complete the tour.
Option #2: Designate multiple dumping sites for reloads
The HERE Tour Planing API enables you to define up to 5 reload locations within a shift. Allowing multiple potential dumping sites for the reload activity enables trucks to spend more time collecting waste.
Trucks can travel to the nearest dumping site, reducing travel time compared to returning to a single, potentially distant location. This approach also helps prevent bottlenecks and overloading at any one site.
The following problem contains four reload locations, one of which is also designated as the one at which the shift ends. As was the case with the previous option, the final trip from the dumping site to the depot is a static segment and is not included in the optimization.
Click to expand/collapse the sample JSON
{
"configuration": {
"experimentalFeatures": ["advancedObjectives"]
},
"fleet": {
"types": [
{
"id": "garbage_truck",
"profile": "truck",
"costs": {
"fixed": 5,
"distance": 0,
"time": 0.005
},
"shifts": [
{
"start": {
"time": "2023-05-28T08:00:00Z",
"location": {
"lat": 52.50935,
"lng": 13.41997
}
},
"end": {
"time": "2023-05-28T15:30:00Z",
"location": {
"lat": 52.488148,
"lng": 13.369797
}
},
"reloads": [
{
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"duration": 600
},
{
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"duration": 600
},
{
"location": {
"lat": 52.453058,
"lng": 13.429382
},
"duration": 600
},
{
"location": {
"lat": 52.528158,
"lng": 13.313056
},
"duration": 600
}
]
}
],
"capacity": [30],
"amount": 3
}
],
"profiles": [
{
"name": "truck",
"type": "truck",
"avoid": {
"features": ["uTurns"]
},
"options": {
"speedCap": 20
}
}
]
},
"plan": {
"jobs": [
{
"id": "Job_1",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.56182,
"lng": 13.497167
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_2",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.534553,
"lng": 13.519429
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_3",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.482275,
"lng": 13.502456
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_4",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.473537,
"lng": 13.505414
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_5",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.463341,
"lng": 13.49061
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_6",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.434003,
"lng": 13.466142
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_7",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.447476,
"lng": 13.433062
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_8",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.458414,
"lng": 13.392079
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_9",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.446407,
"lng": 13.36047
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_10",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.440807,
"lng": 13.351399
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_11",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.462867,
"lng": 13.342188
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_12",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.458232,
"lng": 13.338698
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_13",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.457629,
"lng": 13.323742
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_14",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.552057,
"lng": 13.349613
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_15",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.447377,
"lng": 13.363822
},
"duration": 600
}
],
"demand": [10]
}
]
}
}
]
},
"advancedObjectives": [
[
{
"type": "minimizeUnassigned"
}
],
[
{
"type": "minimizeCost"
}
],
[
{
"type": "minimizeTourOverlap"
}
]
]

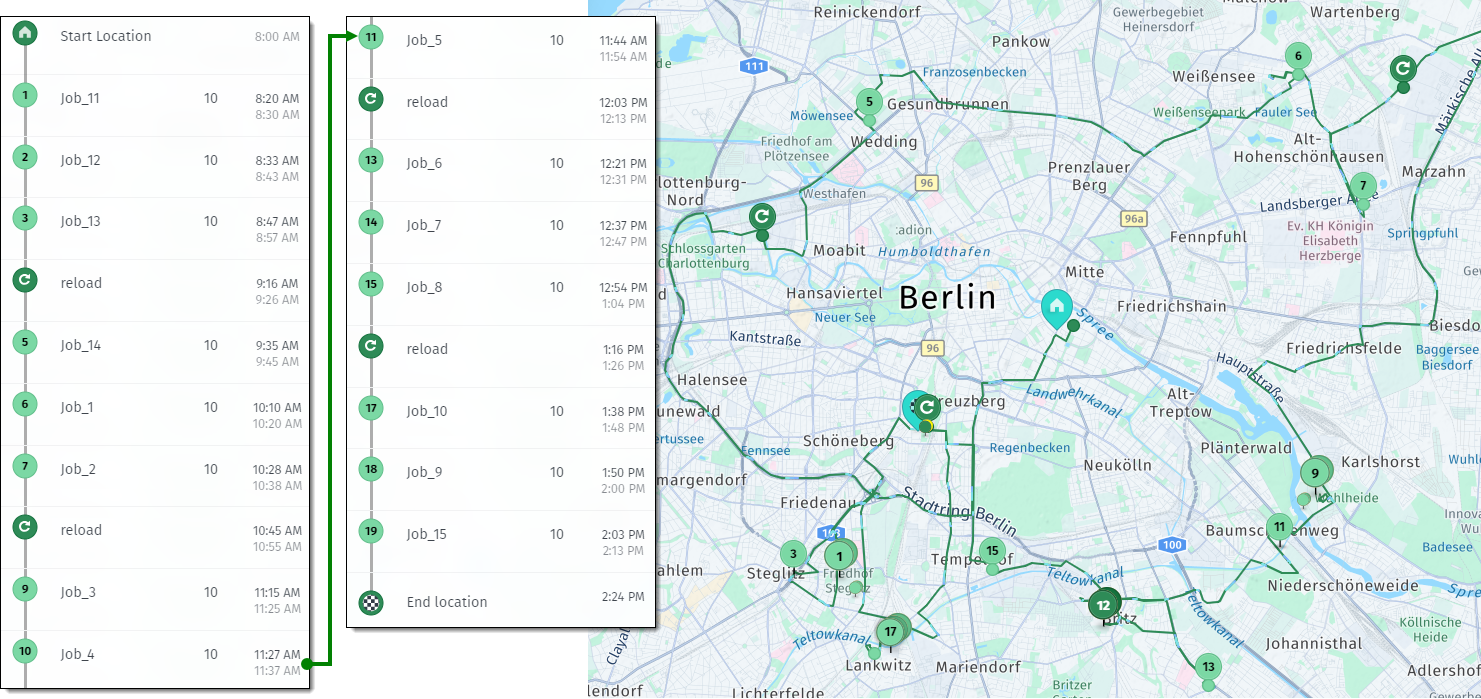

}Solution
The following section provides the full solution of the previous problem:
Click to expand/collapse the sample JSON
{
"statistic": {
"cost": 120.435,
"distance": 108253,
"duration": 23087,
"times": {
"driving": 11687,
"serving": 11400,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"tours": [
{
"vehicleId": "garbage_truck_3",
"typeId": "garbage_truck",
"stops": [
{
"time": {
"arrival": "2023-05-28T08:00:00Z",
"departure": "2023-05-28T08:00:00Z"
},
"load": [0],
"activities": [
{
"jobId": "departure",
"type": "departure",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T08:00:00Z",
"end": "2023-05-28T08:00:00Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 0
},
{
"time": {
"arrival": "2023-05-28T08:20:00Z",
"departure": "2023-05-28T08:30:00Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_11",
"type": "pickup",
"location": {
"lat": 52.462867,
"lng": 13.342188
},
"time": {
"start": "2023-05-28T08:20:00Z",
"end": "2023-05-28T08:30:00Z"
}
}
],
"location": {
"lat": 52.462867,
"lng": 13.342188
},
"distance": 10938
},
{
"time": {
"arrival": "2023-05-28T08:33:05Z",
"departure": "2023-05-28T08:43:05Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_12",
"type": "pickup",
"location": {
"lat": 52.458232,
"lng": 13.338698
},
"time": {
"start": "2023-05-28T08:33:05Z",
"end": "2023-05-28T08:43:05Z"
}
}
],
"location": {
"lat": 52.458232,
"lng": 13.338698
},
"distance": 12149
},
{
"time": {
"arrival": "2023-05-28T08:47:32Z",
"departure": "2023-05-28T08:57:32Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_13",
"type": "pickup",
"location": {
"lat": 52.457629,
"lng": 13.323742
},
"time": {
"start": "2023-05-28T08:47:32Z",
"end": "2023-05-28T08:57:32Z"
}
}
],
"location": {
"lat": 52.457629,
"lng": 13.323742
},
"distance": 14296
},
{
"time": {
"arrival": "2023-05-28T09:16:28Z",
"departure": "2023-05-28T09:26:28Z"
},
"load": [0],
"activities": [
{
"jobId": "reload",
"type": "reload",
"location": {
"lat": 52.528158,
"lng": 13.313056
},
"time": {
"start": "2023-05-28T09:16:28Z",
"end": "2023-05-28T09:26:28Z"
}
}
],
"location": {
"lat": 52.528158,
"lng": 13.313056
},
"distance": 30908
},
{
"time": {
"arrival": "2023-05-28T09:35:09Z",
"departure": "2023-05-28T09:45:09Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_14",
"type": "pickup",
"location": {
"lat": 52.552057,
"lng": 13.349613
},
"time": {
"start": "2023-05-28T09:35:09Z",
"end": "2023-05-28T09:45:09Z"
}
}
],
"location": {
"lat": 52.552057,
"lng": 13.349613
},
"distance": 35313
},
{
"time": {
"arrival": "2023-05-28T10:10:51Z",
"departure": "2023-05-28T10:20:51Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_1",
"type": "pickup",
"location": {
"lat": 52.56182,
"lng": 13.497167
},
"time": {
"start": "2023-05-28T10:10:51Z",
"end": "2023-05-28T10:20:51Z"
}
}
],
"location": {
"lat": 52.56182,
"lng": 13.497167
},
"distance": 46860
},
{
"time": {
"arrival": "2023-05-28T10:28:10Z",
"departure": "2023-05-28T10:38:10Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_2",
"type": "pickup",
"location": {
"lat": 52.534553,
"lng": 13.519429
},
"time": {
"start": "2023-05-28T10:28:10Z",
"end": "2023-05-28T10:38:10Z"
}
}
],
"location": {
"lat": 52.534553,
"lng": 13.519429
},
"distance": 50609
},
{
"time": {
"arrival": "2023-05-28T10:45:14Z",
"departure": "2023-05-28T10:55:14Z"
},
"load": [0],
"activities": [
{
"jobId": "reload",
"type": "reload",
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"time": {
"start": "2023-05-28T10:45:14Z",
"end": "2023-05-28T10:55:14Z"
}
}
],
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"distance": 54905
},
{
"time": {
"arrival": "2023-05-28T11:15:13Z",
"departure": "2023-05-28T11:25:13Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_3",
"type": "pickup",
"location": {
"lat": 52.482275,
"lng": 13.502456
},
"time": {
"start": "2023-05-28T11:15:13Z",
"end": "2023-05-28T11:25:13Z"
}
}
],
"location": {
"lat": 52.482275,
"lng": 13.502456
},
"distance": 67409
},
{
"time": {
"arrival": "2023-05-28T11:27:13Z",
"departure": "2023-05-28T11:37:13Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_4",
"type": "pickup",
"location": {
"lat": 52.473537,
"lng": 13.505414
},
"time": {
"start": "2023-05-28T11:27:13Z",
"end": "2023-05-28T11:37:13Z"
}
}
],
"location": {
"lat": 52.473537,
"lng": 13.505414
},
"distance": 68695
},
{
"time": {
"arrival": "2023-05-28T11:44:05Z",
"departure": "2023-05-28T11:54:05Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_5",
"type": "pickup",
"location": {
"lat": 52.463341,
"lng": 13.49061
},
"time": {
"start": "2023-05-28T11:44:05Z",
"end": "2023-05-28T11:54:05Z"
}
}
],
"location": {
"lat": 52.463341,
"lng": 13.49061
},
"distance": 71636
},
{
"time": {
"arrival": "2023-05-28T12:03:34Z",
"departure": "2023-05-28T12:13:34Z"
},
"load": [0],
"activities": [
{
"jobId": "reload",
"type": "reload",
"location": {
"lat": 52.453058,
"lng": 13.429382
},
"time": {
"start": "2023-05-28T12:03:34Z",
"end": "2023-05-28T12:13:34Z"
}
}
],
"location": {
"lat": 52.453058,
"lng": 13.429382
},
"distance": 76873
},
{
"time": {
"arrival": "2023-05-28T12:21:20Z",
"departure": "2023-05-28T12:31:20Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_6",
"type": "pickup",
"location": {
"lat": 52.434003,
"lng": 13.466142
},
"time": {
"start": "2023-05-28T12:21:20Z",
"end": "2023-05-28T12:31:20Z"
}
}
],
"location": {
"lat": 52.434003,
"lng": 13.466142
},
"distance": 81122
},
{
"time": {
"arrival": "2023-05-28T12:37:44Z",
"departure": "2023-05-28T12:47:44Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_7",
"type": "pickup",
"location": {
"lat": 52.447476,
"lng": 13.433062
},
"time": {
"start": "2023-05-28T12:37:44Z",
"end": "2023-05-28T12:47:44Z"
}
}
],
"location": {
"lat": 52.447476,
"lng": 13.433062
},
"distance": 84651
},
{
"time": {
"arrival": "2023-05-28T12:54:56Z",
"departure": "2023-05-28T13:04:56Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_8",
"type": "pickup",
"location": {
"lat": 52.458414,
"lng": 13.392079
},
"time": {
"start": "2023-05-28T12:54:56Z",
"end": "2023-05-28T13:04:56Z"
}
}
],
"location": {
"lat": 52.458414,
"lng": 13.392079
},
"distance": 88675
},
{
"time": {
"arrival": "2023-05-28T13:16:00Z",
"departure": "2023-05-28T13:26:00Z"
},
"load": [0],
"activities": [
{
"jobId": "reload",
"type": "reload",
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"time": {
"start": "2023-05-28T13:16:00Z",
"end": "2023-05-28T13:26:00Z"
}
}
],
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"distance": 94080
},
{
"time": {
"arrival": "2023-05-28T13:38:20Z",
"departure": "2023-05-28T13:48:20Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_10",
"type": "pickup",
"location": {
"lat": 52.440807,
"lng": 13.351399
},
"time": {
"start": "2023-05-28T13:38:20Z",
"end": "2023-05-28T13:48:20Z"
}
}
],
"location": {
"lat": 52.440807,
"lng": 13.351399
},
"distance": 100644
},
{
"time": {
"arrival": "2023-05-28T13:50:53Z",
"departure": "2023-05-28T14:00:53Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_9",
"type": "pickup",
"location": {
"lat": 52.446407,
"lng": 13.36047
},
"time": {
"start": "2023-05-28T13:50:53Z",
"end": "2023-05-28T14:00:53Z"
}
}
],
"location": {
"lat": 52.446407,
"lng": 13.36047
},
"distance": 101738
},
{
"time": {
"arrival": "2023-05-28T14:03:50Z",
"departure": "2023-05-28T14:13:50Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_15",
"type": "pickup",
"location": {
"lat": 52.447377,
"lng": 13.363822
},
"time": {
"start": "2023-05-28T14:03:50Z",
"end": "2023-05-28T14:13:50Z"
}
}
],
"location": {
"lat": 52.447377,
"lng": 13.363822
},
"distance": 102757
},
{
"time": {
"arrival": "2023-05-28T14:24:47Z",
"departure": "2023-05-28T14:24:47Z"
},
"load": [0],
"activities": [
{
"jobId": "arrival",
"type": "arrival",
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"time": {
"start": "2023-05-28T14:24:47Z",
"end": "2023-05-28T14:24:47Z"
}
}
],
"location": {
"lat": 52.488148,
"lng": 13.369797
},
"distance": 108253
}
],
"statistic": {
"cost": 120.435,
"distance": 108253,
"duration": 23087,
"times": {
"driving": 11687,
"serving": 11400,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"shiftIndex": 0
}
]
}In this case, the optimization algorithm designated a single vehicle to serve all the jobs, including four reloads, as the most efficient way of completing the tour. The following figure provides a visual tour breakdown:
The vehicle assigned by the optimization algorithm completes the tour by picking up waste until it reaches its maximum capacity. The vehicle unloads at the nearest dumping site, using all available sites along the way. This reduces the time spent driving to and from dumping sites, making the tour more efficient.
Option #3: Combine the position and skills features to designate the dumping site
Another method to achieve the use case objectives involves using the position and skills features. First, assign a skills value to each vehicle type in your fleet. Then, create a delivery job for each vehicle type that matches its skills value. To ensure this job is always the last one in the tour (so the load is emptied before returning to the depot), set the job's position to last.
Note
When using this method, the route from the final dumping site to the depot, when the vehicle is empty, is included in the solution.
In this problem, each vehicle type (skills "1", "2", and "3") is assigned a job representing the final visit to the dumping site before returning to the depot. These jobs share the same location, with the position parameter set to last. The reloads location matches the location of the dumping site to enable multiple visits to unload trash, if needed.
The following section contains the full problem JSON:
Click to expand/collapse the sample JSON
{
"fleet": {
"types": [
{
"id": "garbage_truck_1",
"profile": "truck",
"costs": {
"fixed": 5,
"distance": 0,
"time": 0.005
},
"shifts": [
{
"start": {
"time": "2023-05-28T08:00:00Z",
"location": {
"lat": 52.50935,
"lng": 13.41997
}
},
"end": {
"time": "2023-05-28T16:00:00Z",
"location": {
"lat": 52.50935,
"lng": 13.41997
}
},
"reloads": [
{
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"duration": 600
}
]
}
],
"capacity": [30],
"skills": ["1"],
"amount": 1
},
{
"id": "garbage_truck_2",
"profile": "truck",
"costs": {
"fixed": 5,
"distance": 0,
"time": 0.005
},
"shifts": [
{
"start": {
"time": "2023-05-28T08:00:00Z",
"location": {
"lat": 52.50935,
"lng": 13.41997
}
},
"end": {
"time": "2023-05-28T15:30:00Z",
"location": {
"lat": 52.50935,
"lng": 13.41997
}
},
"reloads": [
{
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"duration": 600
}
]
}
],
"capacity": [30],
"skills": ["2"],
"amount": 1
},
{
"id": "garbage_truck_3",
"profile": "truck",
"costs": {
"fixed": 5,
"distance": 0,
"time": 0.005
},
"shifts": [
{
"start": {
"time": "2023-05-28T08:00:00Z",
"location": {
"lat": 52.50935,
"lng": 13.41997
}
},
"end": {
"time": "2023-05-28T15:30:00Z",
"location": {
"lat": 52.50935,
"lng": 13.41997
}
},
"reloads": [
{
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"duration": 600
}
]
}
],
"capacity": [30],
"skills": ["3"],
"amount": 1
}
],
"profiles": [
{
"name": "truck",
"type": "truck",
"avoid": {
"features": ["uTurns"]
},
"options": {
"speedCap": 20
}
}
]
},
"plan": {
"jobs": [
{
"id": "Job_1",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.56182,
"lng": 13.497167
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_2",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.534553,
"lng": 13.519429
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_3",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.482275,
"lng": 13.502456
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_4",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.473537,
"lng": 13.505414
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_5",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.463341,
"lng": 13.49061
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_6",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.434003,
"lng": 13.466142
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_7",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.447476,
"lng": 13.433062
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_8",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.458414,
"lng": 13.392079
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_9",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.446407,
"lng": 13.36047
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_10",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.440807,
"lng": 13.351399
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_11",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.462867,
"lng": 13.342188
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_12",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.458232,
"lng": 13.338698
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_13",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.457629,
"lng": 13.323742
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_14",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.552057,
"lng": 13.349613
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Job_15",
"tasks": {
"pickups": [
{
"places": [
{
"location": {
"lat": 52.447377,
"lng": 13.363822
},
"duration": 600
}
],
"demand": [10]
}
]
}
},
{
"id": "Dumping_Site_1",
"skills": ["1"],
"tasks": {
"deliveries": [
{
"places": [
{
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"duration": 600
}
],
"demand": [0],
"position": {
"type": "last"
}
}
]
}
},
{
"id": "Dumping_Site_2",
"skills": ["2"],
"tasks": {
"deliveries": [
{
"places": [
{
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"duration": 600
}
],
"demand": [0],
"position": {
"type": "last"
}
}
]
}
},
{
"id": "Dumping_Site_3",
"skills": ["3"],
"tasks": {
"deliveries": [
{
"places": [
{
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"duration": 600
}
],
"demand": [0],
"position": {
"type": "last"
}
}
]
}
}
]
},
"advancedObjectives": [
[
{
"type": "minimizeUnassigned"
}
],
[
{
"type": "minimizeTourOverlap"
}
],
[
{
"type": "optimizeTaskPosition"
}
],
[
{
"type": "minimizeCost"
}
]
]
}Solution
The following section provides the full solution of the previous problem:
Click to expand/collapse the sample JSON
{
"statistic": {
"cost": 191.005,
"distance": 219765,
"duration": 35201,
"times": {
"driving": 23201,
"serving": 12000,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"tours": [
{
"vehicleId": "garbage_truck_1_1",
"typeId": "garbage_truck_1",
"stops": [
{
"time": {
"arrival": "2023-05-28T08:00:00Z",
"departure": "2023-05-28T08:00:00Z"
},
"load": [0],
"activities": [
{
"jobId": "departure",
"type": "departure",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T08:00:00Z",
"end": "2023-05-28T08:00:00Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 0
},
{
"time": {
"arrival": "2023-05-28T08:20:26Z",
"departure": "2023-05-28T08:30:26Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_14",
"type": "pickup",
"location": {
"lat": 52.552057,
"lng": 13.349613
},
"time": {
"start": "2023-05-28T08:20:26Z",
"end": "2023-05-28T08:30:26Z"
}
}
],
"location": {
"lat": 52.552057,
"lng": 13.349613
},
"distance": 9830
},
{
"time": {
"arrival": "2023-05-28T08:56:08Z",
"departure": "2023-05-28T09:06:08Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_1",
"type": "pickup",
"location": {
"lat": 52.56182,
"lng": 13.497167
},
"time": {
"start": "2023-05-28T08:56:08Z",
"end": "2023-05-28T09:06:08Z"
}
}
],
"location": {
"lat": 52.56182,
"lng": 13.497167
},
"distance": 21377
},
{
"time": {
"arrival": "2023-05-28T09:13:27Z",
"departure": "2023-05-28T09:23:27Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_2",
"type": "pickup",
"location": {
"lat": 52.534553,
"lng": 13.519429
},
"time": {
"start": "2023-05-28T09:13:27Z",
"end": "2023-05-28T09:23:27Z"
}
}
],
"location": {
"lat": 52.534553,
"lng": 13.519429
},
"distance": 25126
},
{
"time": {
"arrival": "2023-05-28T09:30:31Z",
"departure": "2023-05-28T09:40:31Z"
},
"load": [0],
"activities": [
{
"jobId": "reload",
"type": "reload",
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"time": {
"start": "2023-05-28T09:30:31Z",
"end": "2023-05-28T09:40:31Z"
}
}
],
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"distance": 29422
},
{
"time": {
"arrival": "2023-05-28T10:03:44Z",
"departure": "2023-05-28T10:13:44Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_5",
"type": "pickup",
"location": {
"lat": 52.463341,
"lng": 13.49061
},
"time": {
"start": "2023-05-28T10:03:44Z",
"end": "2023-05-28T10:13:44Z"
}
}
],
"location": {
"lat": 52.463341,
"lng": 13.49061
},
"distance": 43551
},
{
"time": {
"arrival": "2023-05-28T10:21:03Z",
"departure": "2023-05-28T10:31:03Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_3",
"type": "pickup",
"location": {
"lat": 52.482275,
"lng": 13.502456
},
"time": {
"start": "2023-05-28T10:21:03Z",
"end": "2023-05-28T10:31:03Z"
}
}
],
"location": {
"lat": 52.482275,
"lng": 13.502456
},
"distance": 47269
},
{
"time": {
"arrival": "2023-05-28T10:33:03Z",
"departure": "2023-05-28T10:43:03Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_4",
"type": "pickup",
"location": {
"lat": 52.473537,
"lng": 13.505414
},
"time": {
"start": "2023-05-28T10:33:03Z",
"end": "2023-05-28T10:43:03Z"
}
}
],
"location": {
"lat": 52.473537,
"lng": 13.505414
},
"distance": 48555
},
{
"time": {
"arrival": "2023-05-28T11:02:09Z",
"departure": "2023-05-28T11:12:09Z"
},
"load": [30],
"activities": [
{
"jobId": "Dumping_Site_1",
"type": "delivery",
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"time": {
"start": "2023-05-28T11:02:09Z",
"end": "2023-05-28T11:12:09Z"
}
}
],
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"distance": 61015
},
{
"time": {
"arrival": "2023-05-28T11:32:01Z",
"departure": "2023-05-28T11:32:01Z"
},
"load": [0],
"activities": [
{
"jobId": "arrival",
"type": "arrival",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T11:32:01Z",
"end": "2023-05-28T11:32:01Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 73024
}
],
"statistic": {
"cost": 68.605,
"distance": 73024,
"duration": 12721,
"times": {
"driving": 7921,
"serving": 4800,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"shiftIndex": 0
},
{
"vehicleId": "garbage_truck_2_1",
"typeId": "garbage_truck_2",
"stops": [
{
"time": {
"arrival": "2023-05-28T08:00:00Z",
"departure": "2023-05-28T08:00:00Z"
},
"load": [0],
"activities": [
{
"jobId": "departure",
"type": "departure",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T08:00:00Z",
"end": "2023-05-28T08:00:00Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 0
},
{
"time": {
"arrival": "2023-05-28T08:21:57Z",
"departure": "2023-05-28T08:31:57Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_11",
"type": "pickup",
"location": {
"lat": 52.462867,
"lng": 13.342188
},
"time": {
"start": "2023-05-28T08:21:57Z",
"end": "2023-05-28T08:31:57Z"
}
}
],
"location": {
"lat": 52.462867,
"lng": 13.342188
},
"distance": 11790
},
{
"time": {
"arrival": "2023-05-28T08:35:02Z",
"departure": "2023-05-28T08:45:02Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_12",
"type": "pickup",
"location": {
"lat": 52.458232,
"lng": 13.338698
},
"time": {
"start": "2023-05-28T08:35:02Z",
"end": "2023-05-28T08:45:02Z"
}
}
],
"location": {
"lat": 52.458232,
"lng": 13.338698
},
"distance": 13001
},
{
"time": {
"arrival": "2023-05-28T08:49:29Z",
"departure": "2023-05-28T08:59:29Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_13",
"type": "pickup",
"location": {
"lat": 52.457629,
"lng": 13.323742
},
"time": {
"start": "2023-05-28T08:49:29Z",
"end": "2023-05-28T08:59:29Z"
}
}
],
"location": {
"lat": 52.457629,
"lng": 13.323742
},
"distance": 15148
},
{
"time": {
"arrival": "2023-05-28T09:38:24Z",
"departure": "2023-05-28T09:48:24Z"
},
"load": [0],
"activities": [
{
"jobId": "reload",
"type": "reload",
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"time": {
"start": "2023-05-28T09:38:24Z",
"end": "2023-05-28T09:48:24Z"
}
}
],
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"distance": 39313
},
{
"time": {
"arrival": "2023-05-28T10:20:22Z",
"departure": "2023-05-28T10:30:22Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_6",
"type": "pickup",
"location": {
"lat": 52.434003,
"lng": 13.466142
},
"time": {
"start": "2023-05-28T10:20:22Z",
"end": "2023-05-28T10:30:22Z"
}
}
],
"location": {
"lat": 52.434003,
"lng": 13.466142
},
"distance": 58177
},
{
"time": {
"arrival": "2023-05-28T10:36:46Z",
"departure": "2023-05-28T10:46:46Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_7",
"type": "pickup",
"location": {
"lat": 52.447476,
"lng": 13.433062
},
"time": {
"start": "2023-05-28T10:36:46Z",
"end": "2023-05-28T10:46:46Z"
}
}
],
"location": {
"lat": 52.447476,
"lng": 13.433062
},
"distance": 61706
},
{
"time": {
"arrival": "2023-05-28T10:53:58Z",
"departure": "2023-05-28T11:03:58Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_8",
"type": "pickup",
"location": {
"lat": 52.458414,
"lng": 13.392079
},
"time": {
"start": "2023-05-28T10:53:58Z",
"end": "2023-05-28T11:03:58Z"
}
}
],
"location": {
"lat": 52.458414,
"lng": 13.392079
},
"distance": 65730
},
{
"time": {
"arrival": "2023-05-28T11:39:25Z",
"departure": "2023-05-28T11:49:25Z"
},
"load": [30],
"activities": [
{
"jobId": "Dumping_Site_2",
"type": "delivery",
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"time": {
"start": "2023-05-28T11:39:25Z",
"end": "2023-05-28T11:49:25Z"
}
}
],
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"distance": 88296
},
{
"time": {
"arrival": "2023-05-28T12:09:17Z",
"departure": "2023-05-28T12:09:17Z"
},
"load": [0],
"activities": [
{
"jobId": "arrival",
"type": "arrival",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T12:09:17Z",
"end": "2023-05-28T12:09:17Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 100305
}
],
"statistic": {
"cost": 79.785,
"distance": 100305,
"duration": 14957,
"times": {
"driving": 10157,
"serving": 4800,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"shiftIndex": 0
},
{
"vehicleId": "garbage_truck_3_1",
"typeId": "garbage_truck_3",
"stops": [
{
"time": {
"arrival": "2023-05-28T08:00:00Z",
"departure": "2023-05-28T08:00:00Z"
},
"load": [0],
"activities": [
{
"jobId": "departure",
"type": "departure",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T08:00:00Z",
"end": "2023-05-28T08:00:00Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 0
},
{
"time": {
"arrival": "2023-05-28T08:22:19Z",
"departure": "2023-05-28T08:32:19Z"
},
"load": [10],
"activities": [
{
"jobId": "Job_10",
"type": "pickup",
"location": {
"lat": 52.440807,
"lng": 13.351399
},
"time": {
"start": "2023-05-28T08:22:19Z",
"end": "2023-05-28T08:32:19Z"
}
}
],
"location": {
"lat": 52.440807,
"lng": 13.351399
},
"distance": 10902
},
{
"time": {
"arrival": "2023-05-28T08:34:52Z",
"departure": "2023-05-28T08:44:52Z"
},
"load": [20],
"activities": [
{
"jobId": "Job_9",
"type": "pickup",
"location": {
"lat": 52.446407,
"lng": 13.36047
},
"time": {
"start": "2023-05-28T08:34:52Z",
"end": "2023-05-28T08:44:52Z"
}
}
],
"location": {
"lat": 52.446407,
"lng": 13.36047
},
"distance": 11996
},
{
"time": {
"arrival": "2023-05-28T08:47:49Z",
"departure": "2023-05-28T08:57:49Z"
},
"load": [30],
"activities": [
{
"jobId": "Job_15",
"type": "pickup",
"location": {
"lat": 52.447377,
"lng": 13.363822
},
"time": {
"start": "2023-05-28T08:47:49Z",
"end": "2023-05-28T08:57:49Z"
}
}
],
"location": {
"lat": 52.447377,
"lng": 13.363822
},
"distance": 13015
},
{
"time": {
"arrival": "2023-05-28T09:35:31Z",
"departure": "2023-05-28T09:45:31Z"
},
"load": [30],
"activities": [
{
"jobId": "Dumping_Site_3",
"type": "delivery",
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"time": {
"start": "2023-05-28T09:35:31Z",
"end": "2023-05-28T09:45:31Z"
}
}
],
"location": {
"lat": 52.559049,
"lng": 13.533147
},
"distance": 34427
},
{
"time": {
"arrival": "2023-05-28T10:05:23Z",
"departure": "2023-05-28T10:05:23Z"
},
"load": [0],
"activities": [
{
"jobId": "arrival",
"type": "arrival",
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"time": {
"start": "2023-05-28T10:05:23Z",
"end": "2023-05-28T10:05:23Z"
}
}
],
"location": {
"lat": 52.50935,
"lng": 13.41997
},
"distance": 46436
}
],
"statistic": {
"cost": 42.615,
"distance": 46436,
"duration": 7523,
"times": {
"driving": 5123,
"serving": 2400,
"waiting": 0,
"stopping": 0,
"break": 0
}
},
"shiftIndex": 0
}
]
}The following figure shows the visual breakdown of the tour:
As both the solution and the corresponding visualization indicate, all vehicles started and ended their tours at the depot location. For all vehicles, the dumping site served as both the reload location (in case they reached their capacity limit of 30) and the final stop to unload the remaining trash before heading back to the depot.
Conclusions
A wide range of available features in the HERE Tour Planning API allows you to tailor tour planning to different use cases, ensuring optimal solutions for your specific needs. Whether it is food delivery, passenger transport, or waste management, the tools offered by the API help to make your logistics operations more efficient.
Next steps
- For more information about formulating problems in the HERE Tour Planning API, see Problem.
- For an in-depth exploration of the HERE Tour Planning API methods, endpoints, and parameters, see the API Reference.
Updated 28 days ago
