Empirical consumption model for EVs
The empirical consumption model for electric vehicles (EVs) allows you to specify vehicle-specific parameters, which are then used to calculate energy consumption for the vehicle on a given route.
Using this model enables the use of additional controls for energy consumption calculations, such as:
- Charging time
- Charge levels
- Charging stations
Aside from vehicle parameters, the empirical model depends on user-provided consumption speed tables for travelling at a constant speed (freeFlowSpeedTable) and travelling in heavy traffic (trafficSpeedTable).
Consumption speed table
A consumption speed table defines the rate of energy consumption, in vehicle-dependent units per meter driven, when the vehicle travels on a straight road with no change in elevation, at a given speed expressed in km/h.

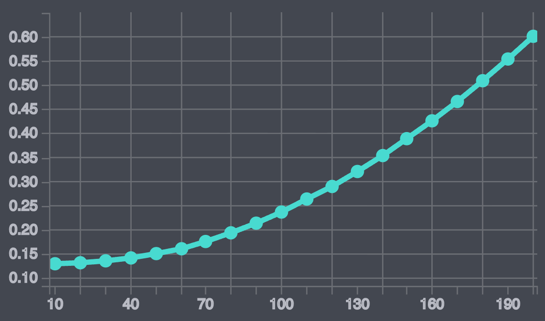

A table represents a piecewise linear function. The following is a function with the corresponding request option:
ev[freeFlowSpeedTable]=10,0.130,20,0.132,30,0.136,40,0.142,50,0.151,60,0.161,70,0.176,80,0.194,90,0.214,100,0.237,110,0.264,120,0.290,130,0.321,140,0.354,150,0.389,160,0.426,170,0.466,180,0.509,190,0.554,200,0.601
Consumption speed function
You can use two consumption speed tables:
freeFlowSpeedTabledescribes energy when travelling at constant speed.trafficSpeedTabledescribes energy consumption when travelling under heavy traffic conditions, that is when the vehicle is expected to often change the travel speed, at a given average speed.
If a request contains only the freeFlowSpeedTable, then that table is used to calculate energy consumption related to speed changes.
When both freeFlowSpeedTable and trafficSpeedTable are provided in the request, the following formula is used to calculate consumption:
- $v_f$: free flow speed of a given road, defined as the estimated speed of travel without considering any traffic-related constraints.
- $v_t$: the average traffic speed of a given road, that uses available traffic information to estimate the speed of travel.
- $S_T$ and $S_F$: the traffic and free flow speed tables, respectively.
If the traffic speed is equal to the free flow speed, the calculation uses only the freeFlowSpeedTable to determine the energy consumption.
The lower the traffic speed is compared to the free flow speed, the bigger an effect the trafficSpeedTable will have.
Consumption calculation formula for electric vehicles
In this model, consumption ($C$) along the segment depends on the length, speed, and elevation difference.
Request and model parameters for EVs
The following request parameters define the consumption model for consumption calculation:
| Request Parameter | Model parameter | Mandatory | Description |
|---|---|---|---|
ev[ascent] | $P_{asc}$ | Energy in Wh consumed per meter rise in elevation. | |
ev[descent] | $P_{desc}$ | Energy in Wh recovered per meter fall in elevation. | |
ev[freeFlowSpeedTable] | $P_{speed}$ | Yes | Function curve specifying consumption rate at a given free flow speed on a flat stretch of road. |
ev[trafficSpeedTable] | $P_{speed}$ | Function curve specifying consumption rate at a given speed under traffic conditions on a flat stretch of road. | |
ev[auxiliaryConsumption] | $P_{aux}$ | Energy in Wh consumed by the vehicle's auxiliary systems (for example, air conditioning, lights) per second of travel. |
Map parameters for EVs
The following parameters are taken from the map data to support the consumption calculation:
| Parameter | Description |
|---|---|
| $L$ | Length of the segment in meters. |
| $Delta h_+$ | Elevation difference between the end and the start of the segment in meters if positive, otherwise zero. |
| $Delta h_-$ | Elevation difference between the end and the start of the segment in meters if negative, otherwise zero. |
| $t$ | Travel time along the segment in seconds. |
