Build HERE Maps with React

By combining the HERE Maps API for JavaScript with React functional components, you can create interactive web applications that provide a seamless user experience and are easy to maintain because you can reuse components throughout an application to reduce code duplication.

Maps often require a lot of customization to properly adjust them to your specific business needs. By building maps as React components, you can encapsulate even the most complex customizations within a single component, making maps easier to manage and reuse.

The following tutorial uses the Vite tool to create and develop a basic React application with the HERE Maps API for JavaScript.

Select your integration method

You can integrate the HERE Maps API for JavaScript into your React application by using the following approaches:

CDN builds: Load the library through <script> tags in your HTML file. This approach is straightforward and doesn't require bundler configuration.
npm package: Install the library as an npm dependency and import modules directly in your JavaScript/TypeScript code. This approach provides better TypeScript support and integrates seamlessly with modern build tools.

This guide covers both methods. Select the one that best fits your project requirements.

Set up a new React app with Vite

Set up a new React application by using the Vite tool that provides a quick way to get started building single-page applications.

In the root project folder, start a command line tool of your choice, for example, Windows Power Shell or the Command Prompt.
Initiate a new React project by entering the following command:
```
npm create vite@latest my-react-app -- --template react
```
Enter y if the terminal displays the prompt to install the create-vite@<version>.

This commands sets up the necessary project scaffolding by creating an app folder.
Set the app folder as the working directory by entering the following command:
```
cd my-react-app
```
Install the npm package manager by entering the following command:
```
npm install
```

With the Vite setup completed, you can now create a React map component for displaying HERE maps.

Option 1: Import the HERE JavaScript API libraries using CDN

Import the libraries required to run the HERE maps in the index.html file.

In the main <app> folder (in this example, the my-react-app folder), open the index.html file by using a code editor.

Replace the default contents of the file with the following HTML code:

<!-- my-react-app/index.html -->
<!doctype html>
<html lang="en">
<head>
   <script type="text/javascript" src="https://js.api.here.com/v3/3.2/mapsjs-core.js"></script>
   <script type="text/javascript" src="https://js.api.here.com/v3/3.2/mapsjs-service.js"></script>
   <script type="text/javascript" src="https://js.api.here.com/v3/3.2/mapsjs-mapevents.js"></script>
   <script type="text/javascript" charset="utf-8" src="https://js.api.here.com/v3/3.2/mapsjs-ui.js" ></script>
   <link rel="stylesheet" type="text/css" href="https://js.api.here.com/v3/3.2/mapsjs-ui.css" />
</head>
<body>
   <div id="root"></div>
   <script type="module" src="/src/main.jsx"></script>
</body>
</html>

Create a map component (CDN approach)

Create a React component that uses the HERE Maps API for JavaScript to display the map inside a <div> by using the ref system to directly access and interact with DOM elements.

In the <app>/src directory, add a components directory.
In the components directory, create a JSX file, for example. HereMap.jsx, and then open that file by using the code editor.

In the JSX file, provide the code for rendering the map component:

// src/components/HereMap.jsx
import { useEffect, useRef } from 'react';

// Stores the DOM node (mapRef) that contains the map
const HereMap = () => {
const mapRef = useRef(null);

// Initializes the HERE map once after mount
useEffect(() => {
   const platform = new H.service.Platform({
      apikey: 'YOUR_HERE_APIKEY',
   });

   // Obtain the default map types from the platform object:
   const defaultLayers = platform.createDefaultLayers();

   // Instantiate (and display) a map:
   const map = new H.Map(mapRef.current, defaultLayers.vector.normal.map, {
      center: { lat: 52.5200, lng: 13.4050 },
      zoom: 10,
      pixelRatio: window.devicePixelRatio || 1,
   });

   // Enable dynamic resizing of the map, based on the current size of the enclosing container
   window.addEventListener('resize', () => map.getViewPort().resize());

   // MapEvents enables the event system.
   // The behavior variable implements default interactions for pan/zoom
   // Also on mobile touch environments.
   const behavior = new H.mapevents.Behavior(
      new H.mapevents.MapEvents(map)
   );

   // Create the default UI:
   const ui = H.ui.UI.createDefault(map, defaultLayers);

   return () => map.dispose();
}, []);

// Return the map component with the map size set to
// the full height and width of the browser window
return (
   <div
      ref={mapRef}
         style={
           {
             width: '100vw',
             height: '100vh'
           }
         }
   />
  );
};

export default HereMap;

Option 2: Use the npm package

Instead of loading the library via CDN, you can install the HERE Maps API for JavaScript as an npm package. This approach offers better integration with modern build tools, improved tree-shaking, and TypeScript support.

Configure the npm registry

Before installing the package, configure npm to use the HERE public repository:

npm config set @here:registry https://repo.platform.here.com/artifactory/api/npm/maps-api-for-javascript/

Install the npm package

Install the HERE Maps API for JavaScript package from the HERE npm registry:

npm install @here/maps-api-for-javascript

Create a map component (npm approach)

When using the npm package, you don't need to add <script> tags in your index.html file. Instead, import the required modules directly in your React components.

Ensure your index.html file contains only the basic structure without the HERE Maps API <script> tags:

<!-- my-react-app/index.html -->
<!doctype html>
<html lang="en">
<head>
   <meta charset="UTF-8" />
   <meta name="viewport" content="width=device-width, initial-scale=1.0" />
   <title>HERE Maps React App</title>
</head>
<body>
   <div id="root"></div>
   <script type="module" src="/src/main.jsx"></script>
</body>
</html>

In the <app>/src directory, add a components directory.

In the components directory, create a JSX file (for example, HereMap.jsx) with the following code:

// src/components/HereMap.jsx
import { useEffect, useRef } from 'react';

// Import the HERE Maps API for JavaScript libraries
import H from '@here/maps-api-for-javascript';
// Import the CSS style for the default UI components
import '@here/maps-api-for-javascript/bin/mapsjs-ui.css';

// Stores the DOM node (mapRef) that contains the map
const HereMap = () => {
const mapRef = useRef(null);

// Initializes the HERE map once after mount
useEffect(() => {
   const platform = new H.service.Platform({
      apikey: 'YOUR_HERE_API_KEY',
   });

   // Obtain the default map types from the platform object:
   const defaultLayers = platform.createDefaultLayers();

   // Instantiate (and display) a map:
   const map = new H.Map(mapRef.current, defaultLayers.vector.normal.map, {
      center: { lat: 52.5200, lng: 13.4050 },
      zoom: 10,
      pixelRatio: window.devicePixelRatio || 1,
   });

   // Enable dynamic resizing of the map, based on the current size of the enclosing container
   window.addEventListener('resize', () => map.getViewPort().resize());

   // MapEvents enables the event system.
   // The behavior variable implements default interactions for pan/zoom
   // Also on mobile touch environments.
   const behavior = new H.mapevents.Behavior(
      new H.mapevents.MapEvents(map)
   );

   // Create the default UI:
   const ui = H.ui.UI.createDefault(map, defaultLayers);

   return () => map.dispose();
}, []);

// Return the map component with the map size set to
// the full height and width of the browser window
return (
   <div
      ref={mapRef}
         style={
         {
            width: '100vw',
            height: '100vh'
         }
      }
   />
  );
};

export default HereMap;

The npm package approach provides the same functionality as the CDN method but with better integration into modern JavaScript build pipelines.

Import the React component

Configure the main application entry point to use the React component with the map.

From the <app>/src directory, open the App.jsx file.

Replace the default file contents with the following code:

// my-react-app/src/App.jsx
import HereMap from './components/HereMap';

function App() {
return (
   <div>
      <HereMap />
   </div>
  );
}

export default App;

Display the map

To preview your map, run the development server for your React app. The npm run dev command starts a fast local web server at the default port.

Start the app by entering the following command:
```
npm run dev
```
As a result of this command, Vite bundles the app and enables viewing the map in a browser. In addition Vite reloads the page or updates modules instantly when you make edits.
Open a web browser and then navigate to http://localhost:5173/.

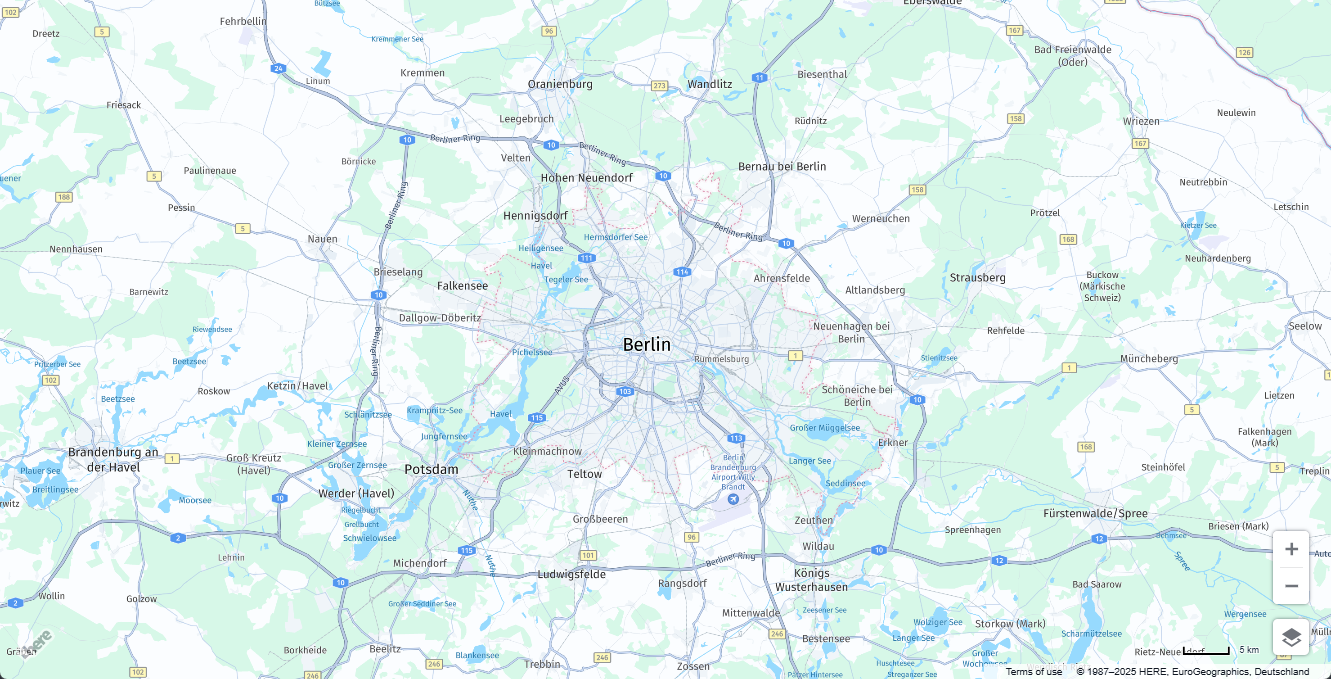

Result: The browser displays the map, as shown in the following example:

Optional: Configure additional map components

Improve the usability of your application by incorporating additional map components that provide more features. To achieve this, follow these steps to add a button that enables or disables public transit information display, leveraging the features and modes capabilities of the HERE Maps API for JavaScript.

To add the toggle, you need to create additional components, as well as update the existing ones to accommodate additional functionality. The resulting directory structure will look as follows:

src/
├── main.jsx
├── App.jsx
└── components/
    ├── HereMap.jsx
    ├── HereMapContext.jsx <-- Manages the state of different components
    └── PublicTransitToggle.jsx <-- Controls the toggle logic and button styling

Manage shared state

Create the HereMapContext component to enable the communication between the HereMap and PublicTransitToggle components while maintaining principle of separated concerns.

In the src/components directory, create the HereMapContext.jsx file and open it in a code editor.

Populate the file with code, as shown in the following example:

// src/components/HereMapContext.jsx
import { createContext, useContext, useRef, useState } from 'react';

const HereMapContext = createContext();

export const HereMapProvider = ({ children }) => {

// Holds the HERE map style object
const styleRef = useRef(null);

// Tracks whether the map style is ready
const [isReady, setIsReady] = useState(false);

return (
   <HereMapContext.Provider
      value={
        {
         styleRef,
         isReady,
         setIsReady
        }
      }
   >
      {children}
   </HereMapContext.Provider>
  );
};

// Custom hook that lets any component access the HERE map and style
export const useHereMap = () => useContext(HereMapContext);

Update the map component to share context and style status

Extract the style object and save it to styleRef for global access. Only after the map style is ready can you modify by adding or removing components.

From the src/components directory, open the HereMap.jsx file.

Update the file to pull in the context information from the HereMapContext component and ensure the style information can be accessed globally. See the following sample for the updated version of the HereMap component logic:

// src/components/HereMap.jsx
import { useEffect, useRef } from 'react';
import { useHereMap } from './HereMapContext'; // Obtain the context

const HereMap = () => {
const mapRef = useRef(null);
const { styleRef, setIsReady } = useHereMap(); // Get the context setters

useEffect(() => {
   const platform = new H.service.Platform({ apikey: 'YOUR_API_KEY' });

   const defaultLayers = platform.createDefaultLayers();

   const map = new H.Map(mapRef.current, defaultLayers.vector.normal.map, {
      center: { lat: 52.52, lng: 13.405 },
      zoom: 10,
      pixelRatio: window.devicePixelRatio || 1,
   });

   new H.mapevents.Behavior(new H.mapevents.MapEvents(map));
   H.ui.UI.createDefault(map, defaultLayers);

   const baseLayer = map.getBaseLayer();
   const style = baseLayer.getProvider().getStyle();

   // Enable other components to use the style once it is ready
   if (style) {
      styleRef.current = style;
      setIsReady(true);
   }

   window.addEventListener('resize', () => map.getViewPort().resize());

   return () => map.dispose();
}, [styleRef, setIsReady]);

return (
   <div
      ref={mapRef}
         style={
           {
             width: '100vw',
             height: '100vh'
           }
         }
   />
  );
};

export default HereMap;

Create the toggle logic

To promote modularity and reusability, add the PublicTransitToggle component separately. This component controls whether to display or hide the public transit feature from the map view.

In the src/components directory, add the PublicTransitToggle.jsx file and open it by using a code editor.

Configure the toggle logic, as shown in the following example:

// src/components/PublicTransitToggle.jsx

import { useState } from 'react';
import { useHereMap } from './HereMapContext';

const PublicTransitToggle = () => {
const { styleRef, isReady } = useHereMap(); // Access shared map state
const [enabled, setEnabled] = useState(false); // Track toggle state

const toggleTransit = () => {
   if (!isReady || !styleRef.current) {
      console.warn('Map style is not ready yet');
      return;
   }

   const style = styleRef.current;
   const feature = 'public transit';
   const mode = 'all systems';

   const enabledFeatures = style.getEnabledFeatures();
   const featureIndex = enabledFeatures.findIndex(f => f.feature === feature);

   if (featureIndex === -1) {
      // Enable the feature
      enabledFeatures.push({ feature, mode });
      setEnabled(true);
   } else {
      // Disable the feature
      enabledFeatures.splice(featureIndex, 1);
      setEnabled(false);
   }

   style.setEnabledFeatures(enabledFeatures);
};

// Returns the button with the associated styling, depending on the toggle state
return (
   <button
      onClick={toggleTransit}
      disabled={!isReady}
      style={
        {
         position: 'absolute',
         top: '20px',
         left: '20px',
         zIndex: 1000,
         padding: '10px 20px',
         fontSize: '14px',
         fontWeight: '700',
         fontFamily: 'Roboto, Helvetica Neue, Arial, sans-serif',
         backgroundColor: isReady ? (enabled ? '#1A73E8' : '#f4f6f9') : '#e0e0e0',
         color: isReady ? (enabled ? '#ffffff' : '#1A73E8') : '#aaa',
         border: `2px solid ${isReady ? '#1A73E8' : '#ccc'}`,
         borderRadius: '6px',
         cursor: isReady ? 'pointer' : 'not-allowed',
         transition: 'all 0.2s ease-in-out',
         boxShadow: isReady ? '0 2px 4px rgba(0,0,0,0.1)' : 'none',
        }
      }
   >
      {enabled ? 'Disable Public Transit' : 'Enable Public Transit'}
   </button>
  );
};

export default PublicTransitToggle;

Share state logic across app components

Add the HereMapProvider component that wraps up the app and gives child components access to shared values.

From the src directory, open the main.jsx file.

Replace the default code with the following logic:

// src/main.jsx
import React from 'react';
import ReactDOM from 'react-dom/client';
import App from './App';
import { HereMapProvider } from './components/HereMapContext';

ReactDOM.createRoot(document.getElementById('root')).render(
<React.StrictMode>
   <HereMapProvider>
      <App />
   </HereMapProvider>
</React.StrictMode>
);

Add the toggle component to the app

Ensure that the PublicTransitToggle button works properly by making the corresponding component access the shared map state from the HereMap component.

From the src directory, open the App.jsx file by using a code editor.

Add the button component to your app, as shown in the following example:

import HereMap from './components/HereMap';
import PublicTransitToggle from './components/PublicTransitToggle';

function App() {
return (
   <>
      <HereMap />
      <PublicTransitToggle />
   </>
  );
}

export default App;

This update renders both HereMap and PublicTransitToggle at the top level of your app. It ensures that:

The HereMap component mounts first, so it can create the HERE map instance and its style.
These values (map and style) are shared using React Context, specifically through the HereMapProvider.
The PublicTransitToggle button can then access the shared data by calling the useHereMap() custom hook.

Because both components are part of the same component tree (wrapped by HereMapProvider), they can communicate indirectly. Result: You can now toggle the public transit feature on your map, as shown in the following example:

Next steps

To further explore the design and features of the HERE Maps API for JavaScript, see the API Reference.
