How to deploy a pipeline
Deploy a pipeline
Deploying a pipeline to the HERE platform involves the following tasks:
- Create a pipeline object to which the pipeline service assigns a pipeline ID{{ ' (or pipeline HRN if Pipelines API v3 is used)' if book.product == 'internal' else ''}}.
- Select the application JAR file to be deployed.
- Create a template object that contains the default runtime configuration and the previously selected JAR file.
Let the pipeline service assign it a template ID{{ ' (or template HRN if Pipelines API v3 is used)' if book.product == 'internal' else ''}}.
Note
If the template creation cannot be completed within 50 minutes, an error will be returned.
- Create the pipeline version to which the pipeline service assigns a version ID.
- Activate the pipeline version.

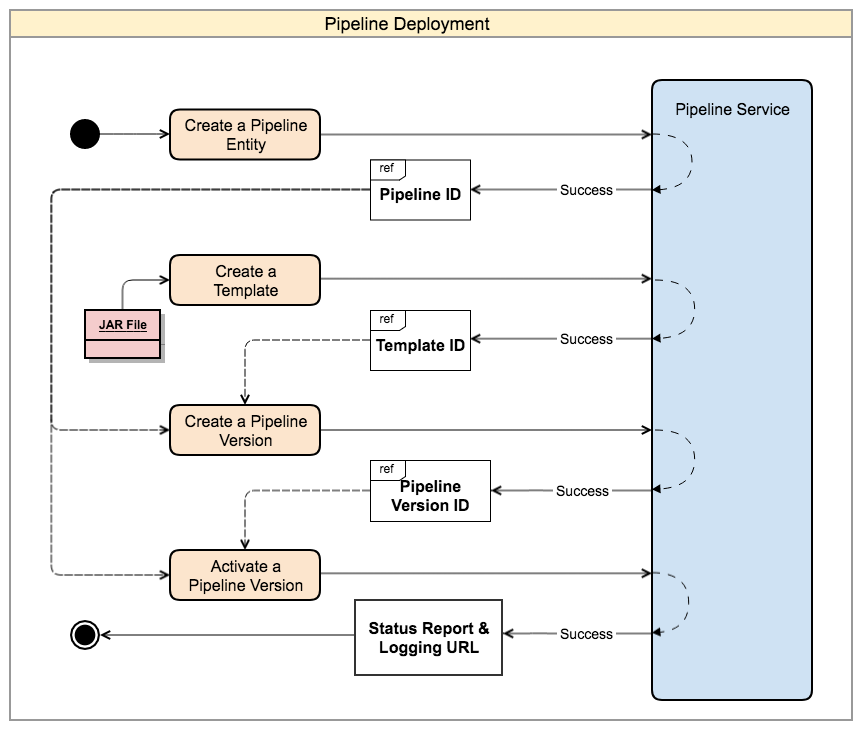

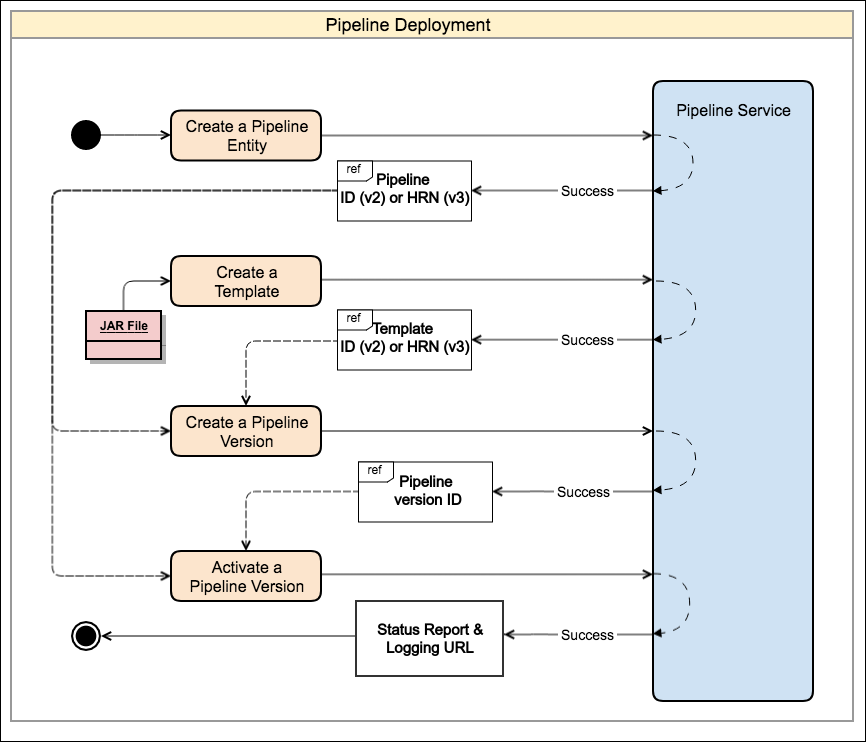

The deployment process is illustrated below:
{% if book.product == 'internal' %}
{% else %}
{% endif %}
This illustration focuses on a single pipeline. However, real-world scenarios may deploy multiple pipelines that function
together in complex data workflows that we refer to as a topology.
{% if book.product == 'internal' %}
You can deploy pipelines from the OLP CLI or the platform portal:
- To deploy a pipelines with v2 API, see the OLP CLI Pipeline workflows or Deploy a pipeline via the web portal guides.
- To deploy a pipelines with v3 API, see the OLP CLI Flow pipeline workflows guide.
Please note that Pipelines API v3 currently is not supported by the web portal.
{% else %}
You can deploy pipelines from the platform portal or the OLP CLI. Please refer to the following articles for more information:
{% endif %}
For details about pipeline configuration files and their parameters, see Configurations available for pipeline developers.
For details on configuring checkpoints and savepoints, see Flink checkpointing and Externalized checkpoint feature.
Post-deployment
Once you have deployed the pipeline, it is ready to run and process the available data. This process is initiated by activating the pipeline version. Pipeline activity is logged as data is processed and processed data is sent to the output catalog.
For more information, please see the following articles:
