Functional patterns

The following functional patterns are available:

• Direct 1:N and M:N Compilers
• MapGroupCompiler
• RefTreeCompiler

All of the classes that implement the functional compiler interfaces described
below must be Serializable, as they are serialized and distributed among
Spark executors.

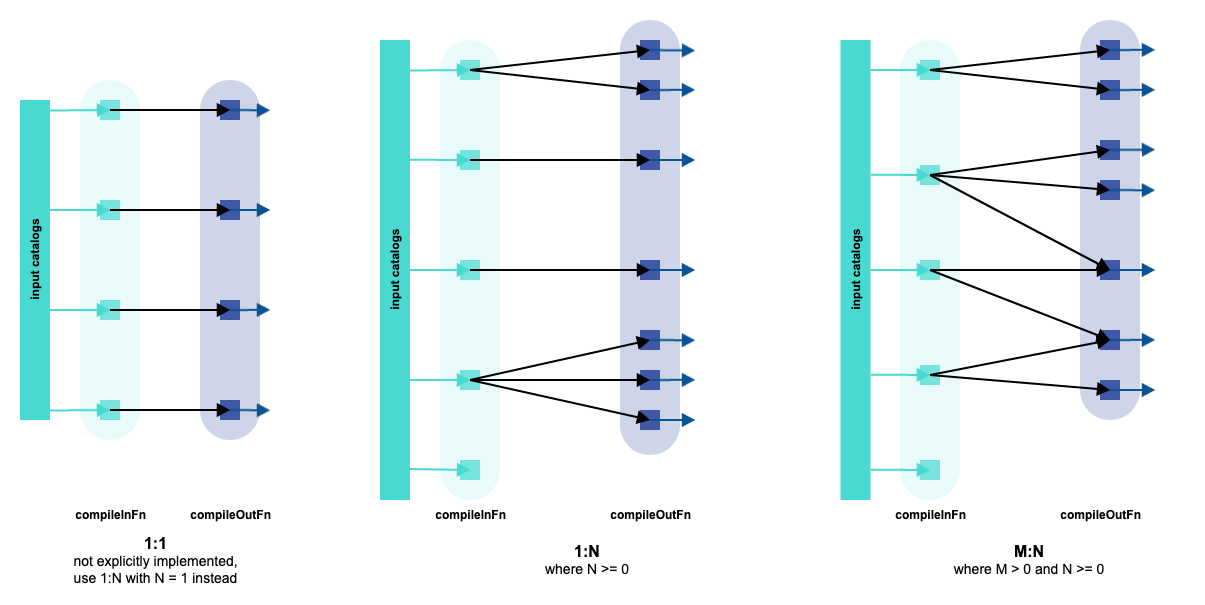

Direct 1:N and M:N compilers

A direct compiler implements a logical map (1:1), map (1:N) or
map+group (M:N) between input partitions and output partitions, with
constraints on the mapping function.

This pattern can be used when the input/output transformations follow these
principles:

• Each input partition contributes to one or more output partition.
• Which output partition each input partition contributes to is a function of
  the partition key only, but not of its metadata or content.
• Each output partition is affected by one and only one input partition. This
  is the case for the Direct 1:N Compiler.
• Each output partition may be affected by more than one input partition. This
  is the case for the Direct M:N Compiler.

Typical use cases

Developers can use this pattern in cases where the transformation is based on
the keys and not on their content (mapping is fixed).

• Passing metadata unchanged, similar to a multiplexer, or filtering by layer.
• Transforming partitions 1:1, such as decoding and re-encoding each payload.
• Re-tiling, such as changing the tiling scheme or shifting a layer of one or
  more levels up or down.
• Geometric transformations solely based on keys, such as processing
  neighboring tiles or merging and splitting tiles.

High-level interface

T is a developer-defined type.

CompileIn (compiler front-end): describes the mapping between input and
output keys and processes input keys to generate the intermediate Ts.

• mappingFn(in: InKey) ⇒ Iterable[OutKey]
• compileInFn(in: (InKey, InMeta)) ⇒ T

CompileOut (compiler back-end): collects and groups Ts coming from the
front end (1 or M) to the same output partition and produces payloads that are
then uploaded and committed.

• compileOutFn(out: OutKey, intermediate: T) ⇒ Option[Payload] (for the 1:N
  case)

• compileOutFn(out: OutKey, intermediate: Iterable[T]) ⇒ payloads to be published
  (for the M:N case)

Runtime characteristics

Direct 1:N and M:N compilers are stateless.

The 1:N compiler is the most efficient. In incremental mode, mappingFn,
compileInFn, and compileOutFn run only on a number of partitions
proportional to the number of the changes. compileInFn and compileOutFn can
be configured for parallel execution inside single Spark workers, in case they
are I/O bound. In contrast, mappingFn cannot be I/O bound because it has no
access to the metadata, so it cannot retrieve and process payloads.

The M:N compiler is almost as efficient as the 1:N. The description above also
applies to the M:N case. However, in incremental mode, mappingFn is applied
to the whole dataset, while compileInFn and compileOutFn are applied only
to the changes or to the restricted set of output partitions that must be
recomputed due to the input changes. mappingFn must be fast as it may even be
executed multiple times for the same key.

Ts are stored in an RDD which is then shuffled between front-end and back-end
stages. This may pose a limitation in terms of the amount of memory, disk,
or network resources required.

References

• TaskBuilder: withDirect1ToNCompiler and withDirectMToNCompiler methods
• Direct1ToNCompiler: main interface to implement for the 1:N case
• DirectMToNCompiler: main interface to implement for the M:N case

MapGroupCompiler

This is a more general version of an M:N direct compiler. Unlike in an M:N
direct compiler, where the input/output mapping is a function of the input key
only, in a MapGroup compiler the input/output mapping is a function of the
input key and the input metadata (therefore of the content) of the input
catalogs.

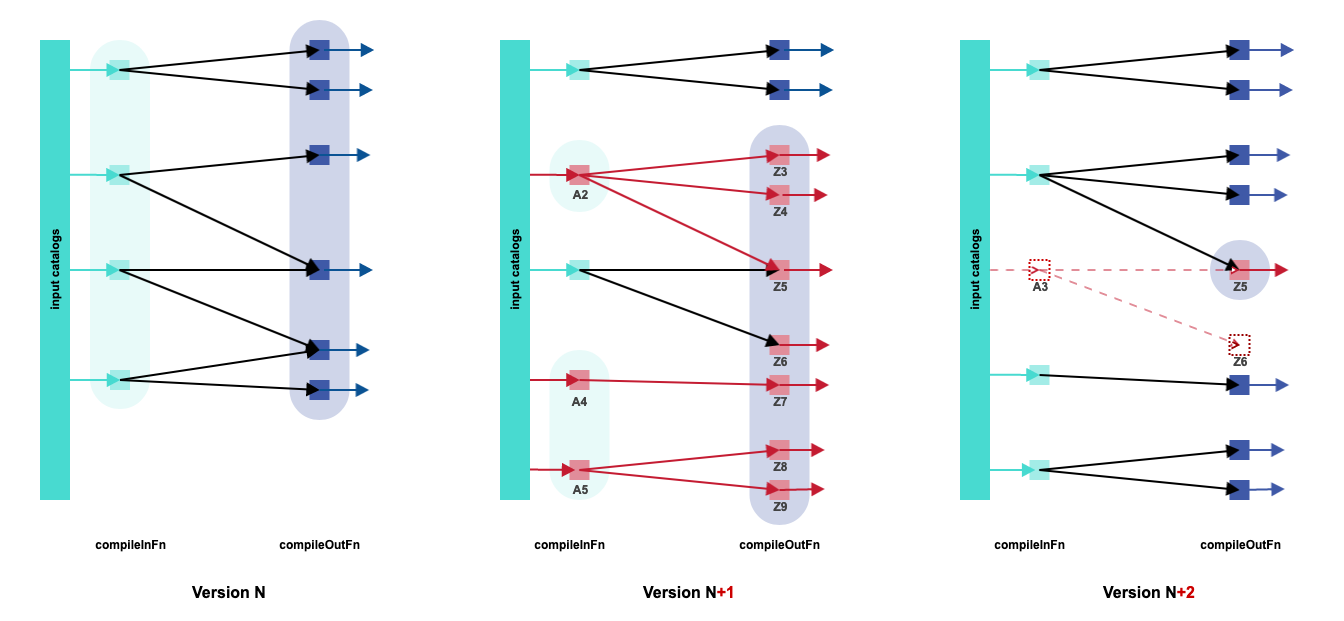

In the example above, a generic M:N compiler processes, at version N, input
partitions (map), shuffles the resulting Ts grouping them by output
partitions (group), and subsequently generates output partitions for publishing.

At version N+1, two input partitions (A₂, A₄) are changed
and one input partition (A₅) is added. A₂ determines
recompilation of the two output partitions (Z₃, Z₄) and
the creation of a new one (Z₅), due to changes in its payload. A
₄ removes a dependency between itself and an output partition (Z₆),
again due to changes in its payload. Both the output partitions that
depend on A₄ at version N (Z₆, Z₇) or depended
on A₄ at version N+1 (Z₇) are regenerated. The added
input partition (A₅) determines the creation of two new output
partitions (Z₈, Z₉).

At version N+2, one input partition (A₃) is deleted. Both the output
partitions (Z₅, Z₆) that depended on A₃ at
version N+1 are reprocessed. Output partitions for which the input for
reprocessing is empty are deleted. So in the example, Z₅ is updated
and published, while Z₆ is deleted.

The behavior of the compiler across the various versions is fully dynamic. In
other words, nothing is fixed: the input/output mapping and values Ts emitted
by the front-end and grouped by the back-end, are a function of the
input partitions.

The MapGroup compiler implementation included in the processing library
orchestrates this entire process. You need only provide the two processing
functions.

This pattern can be used when the input/output transformation follows these
principles:

• Each input partition contributes to zero, one, or more output partitions.
• Which output partition each input partition contributes to may be a function
  of the partition key, metadata, or even content.
• Each input partition may affect output partitions in different ways, specific
  to the output partition key.
• Each output partition may be affected by more than one input partition.
• How an input partition affects the output can be a function of only that
  particular partition; it is not possible to "lookup" or "follow" references to
  additional partitions in the front-end.

Typical use cases

Developers can use this pattern in cases where the transformation takes into
account the input content.

• Decoding input partitions and distributing content among different output
  partitions or as a function of the content.
• Creating output layers with a subset of input data.
• Distributing objects from input layers to output layers, shifting levels up
  or down, or as a function of object properties.
• Indexing of content, for example by country or by tile.

High-level interface

T is a developer-defined type.

CompileIn (compiler front-end): processes keys and metadata, possibly
retrieving the payloads, and produces the output partitions that are affected
by the input, including "how" (as some intermediate processing data, T). The
payloads of the output partitions will be functions of the input partitions
through this intermediate data only.

• compileInFn(in: (InKey, InMeta)) ⇒ Iterable[OutKey, T]

CompileOut (compiler back-end): collects and groups Ts that are
coming from the front-end to the same output partition and produces the
payloads which are then uploaded and committed.

• compileOutFn(out: OutKey, intermediate: Iterable[T]) ⇒ payloads to be published

Runtime characteristics

MapGroup is a stateful compiler: it persists in the output catalog, on a
dedicated state layer, state data describing how the input affected the output
in a previous compilation. The state data is then used and updated in each run
to properly implement the incremental compilation. This requires no
intervention from the developer.

The compiler is efficient also in incremental mode. Both compileInFn and
compileOutFn run only on a number of partitions proportional to the number of
changes. Which partitions are processed depends on the compiler implementation.
In particular, compileInFn is run over:

• the changed partitions;
• the unchanged partitions whose intermediate processing result (T) affects,
  according to the previous runs of compileInFn, output partitions that are
  candidate to recompilation.

compileInFn and compileOutFn can be configured for parallel execution
inside single Spark workers, in case they are I/O bound.

Ts are stored in an RDD that is then shuffled between front-end and
back-end stages. This may pose as a limitation in terms of the amount of
memory, disk, or network resources required.

References

• TaskBuilder: withMapGroupCompiler method
• MapGroupCompiler: main interface to implement

RefTreeCompiler

This is an even more generic version of the aforementioned M:N map+group
compiler. The main benefit of this pattern is the possibility of representing
references between input partitions. These references are resolved, aggregated,
and provided by the processing library already in the front-end (CompileIn).
Therefore, input partitions are not compiled standalone, but have access to
additional input partitions containing referenced objects or data logically
related to them.

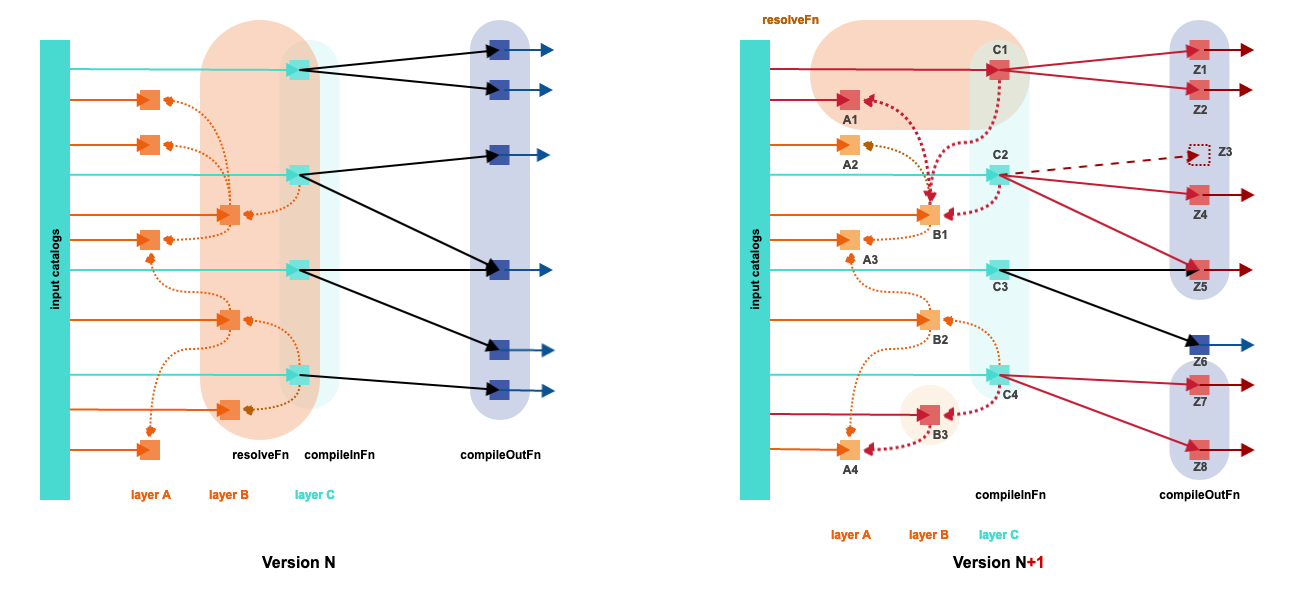

In the example, a generic compiler processes, at version N, input partitions,
shuffles the resulting Ts grouping them by output partitions, and generates
output partitions for publishing.

This is the first compiler that introduces layer-specific logic. For clarity,
three layers (A, B, and C) are defined among the input catalog(s). One layer is
defined as a subject layer, in this case, layer C. This is the layer that
drives the compilation. In addition, layers A and B contain additional
attributes and properties needed to compile the subject layer; they are the
referenced layers. The result of compilation from one subject partition may
affect 0, 1, or more output partitions, similar to the other compilers. There
can be more than one subject layer and layers may be both subject and
referenced simultaneously. However, in the example above, there are one
subject layer and two "referenced" layers.

• Partitions of layer C may have zero or more references to partitions of layer
  B.
• Partitions of layer B may have zero or more references to partitions of layer
  A.
• Partitions of layer A have no references.

Conceptually, there are only two types of references (C → B and B → A) and
these form a tree rooted in C; hence the name RefTree.

At version N+1, one partition changes for each layer. The change inC₁
results in its recompilation that updates Z₁ and Z₂
and the creation of a new reference to B₁. References are tracked,
so the change of A₁ results, indirectly via B₁, also in
recompilation of the subject C₂. The recompilation of C₂
produces one new (Z₄), one updated (Z₅) and one deleted
(Z₃) partition in the output map. The change of B₃ results
in recompilation of the subject C₄ and the creation of a new
reference to A₄. At a given run, which references exist depends on
the content. References are resolved by the processing library
(via resolveFn), provided to each subject (via compileInFn), and affect
the incremental compilation of future versions. All of the reference resolution
logic, reference tracking, and dependency tracking is provided by the pattern
implementation.

At compilation N+1, the following references are resolved and provided to the
following subjects, that are recompiled:

• C₁ with references to A₁, A₂, A₃,
  B₁.
• C₂ with references to A₁, A2, A₃,
  B₁.
• C₃ with no references (not needed because of input changes, but to
  reproduce the output tile Z₅ shared with C₂).
• C₄ with references to A₃, A₄, B₂,
  B₃.

Although the compilation of C₃ produces output for Z₆,
this is discarded and Z₆ is not recompiled.

A more complex example of reference trees

In this example, the schema of reference contains 3 trees.

The same layer may be both a subject and a reference, even within the same
tree. Layers may also be present more than once, as references are independent.
Ref_x in the examples are the reference names.

The tree rooted in C has the references:

• Ref₁: C → B
• Ref₂: B → A

The tree rooted in D has the references:

• Ref₃: D → E
• Ref₄: E → A
• Ref₅: D → F
• Ref₆: F → E

The two references to E are different.

The tree rooted in G has the references:

• Ref₇: G → G
• Ref₈: G → E

The reference from G to G is not cyclic. From one subject partition of G, it
is possible to obtain zero, one, or more references to other partitions of G,
but the chain of references from the subject G stops at this point. If
needed, another G → G reference may be added to the tree, but this will also be
not recursive: it will just stop the resolution of references to G after two
hops.

This pattern can be used when the input or output transformation follows these
principles:

• All of the applicable cases of MapGroupCompiler.
• Some input partitions (subjects) have references to other input partitions
  that shall be resolved to process the subjects fully.
• Which output partition each subject partition contributes to may be a
  function of the partition key, metadata, content, or referenced input
  partitions (with their metadata and content).
• Input partitions may reference other input partitions as long as the schema
  of the possible references is fixed and can be defined per layer.

Typical use cases

Developers can use this pattern in cases where the transformation takes into
account the input content and there are references to be resolved and followed
between input partitions.

• All the typical use cases of MapGroupCompiler.
• Compilation of complex input catalogs that have references between input
  partitions.
• Implicit references, such as a road layer and a topology layer that might be
  coupled together by a tile ID.
• Explicit references within the same layer, such as partitions of a road layer
  that reference other partitions to form the road graph.
• Explicit references across layers and catalogs, such as a road layer that
  references attributes or admin area information stored in other layers.

High-level interface

T is a developer-defined type.

Resolve (calculation and resolution of references): defines the structure
of the references between input partitions. The input partitions are then
analyzed, eventually retrieving their payloads, to calculate the other input
partitions that these partitions reference.

• refStructure: tree structure modelling the references
• resolveFn(in: (InKey, InMeta)) ⇒ Map[reference, Set[InKey]]

CompileIn (compiler front-end): processes key and metadata of each input
partition and its references, eventually retrieving the payloads, and produces
the output partitions that are affected by the input, including "how"
(the intermediate Ts).

• compileInFn(in: (InKey, InMeta), refs: Map[InKey, InMeta]) ⇒ Iterable[
  OutKey, T]

CompileOut (compiler back-end): collects and groups the Ts coming
from the front-end to the same output partition and produces the payloads that
are then uploaded and committed.

• compileOutFn(out: OutKey, intermediate: Iterable[T]) ⇒ payloads to be
  published

Runtime characteristics

RefTreeCompiler is a stateful compiler: it persists in the output catalog, on a
dedicated state layer, state data describing references among input partitions
and how the input affected the output in a previous compilation. This state
data is then used and updated in each run to properly implement the incremental
compilation. This requires no intervention from the developer.

The compiler is efficient also in incremental mode. resolveFn, compileInFn
and compileOutFn run only on a number of partitions proportional to the
number of changes. Which partitions are processed depends on the compiler
implementation. In particular:

• resolveFn is run over the changed partitions only;
• compileInFn is run over:
  • the changed partitions;
  • the partitions with changed references;
  • the unchanged partitions, whose intermediate processing result (T)
    affects, according to the previous runs of compileInFn, output partitions
    that are candidate for recompilation.

resolveFn, compileInFn and compileOutFn can be configured for parallel
execution inside single Spark workers, in case they are I/O bound.

Ts are stored in an RDD which is then shuffled between front-end and back-end
stages. This may pose a limitation in terms of the amount of memory, disk,
or network resources required.

References

• TaskBuilder: withRefTreeCompiler method
• RefTreeCompiler: main interface to implement
• RefTree: reference tree structure, that controls the process
