How to correlate road attributes to segment geometry

Objectives: Understand how to correlate road attribute values to segment geometry by following the attribution referencing model of HERE Map Content.

Complexity: Intermediate

Time to complete: 45 min

Prerequisites: Verify credentials, Organize your work in projects

Source code: Download

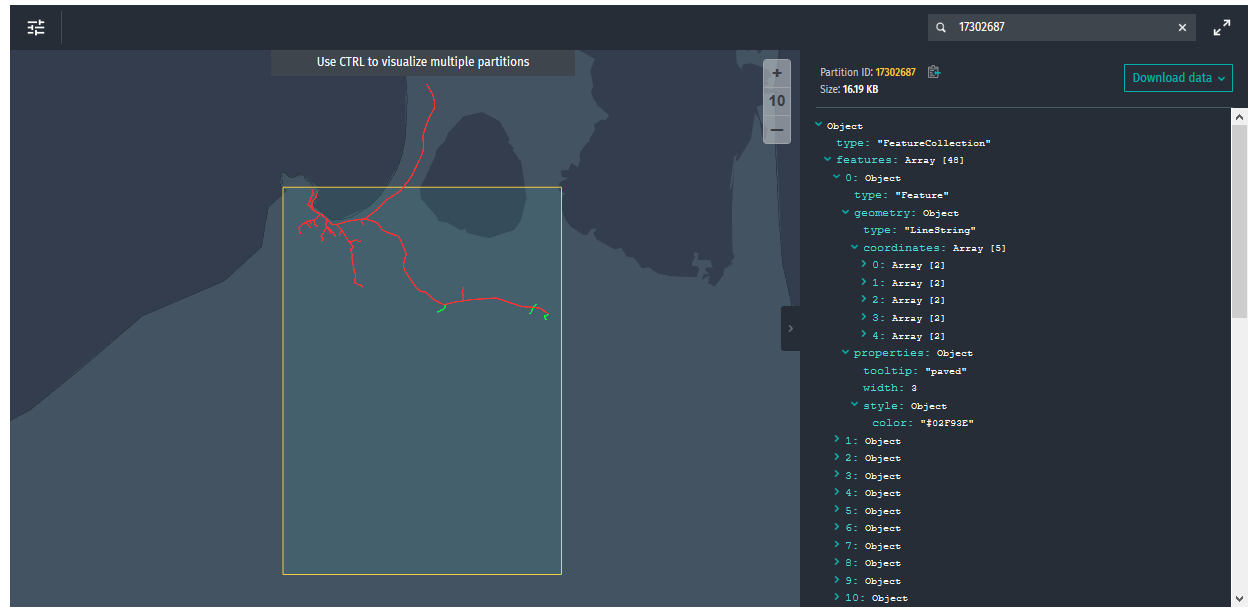

This example demonstrates how to read road attribute values and correlate them to segment geometry following the attribution referencing model of HERE Map Content.

The application uses the Data Client Library to start with a single partition in the Topology Attributes layer of HERE Map Content.

The Data Client Library then aggregates its corresponding segment geometry into paved and unpaved segments. The output is a single GeoJSON tile with the paved segments colored in green and the unpaved segments colored in red.

This single GeoJSON partition, which the application processes, is 17302687.

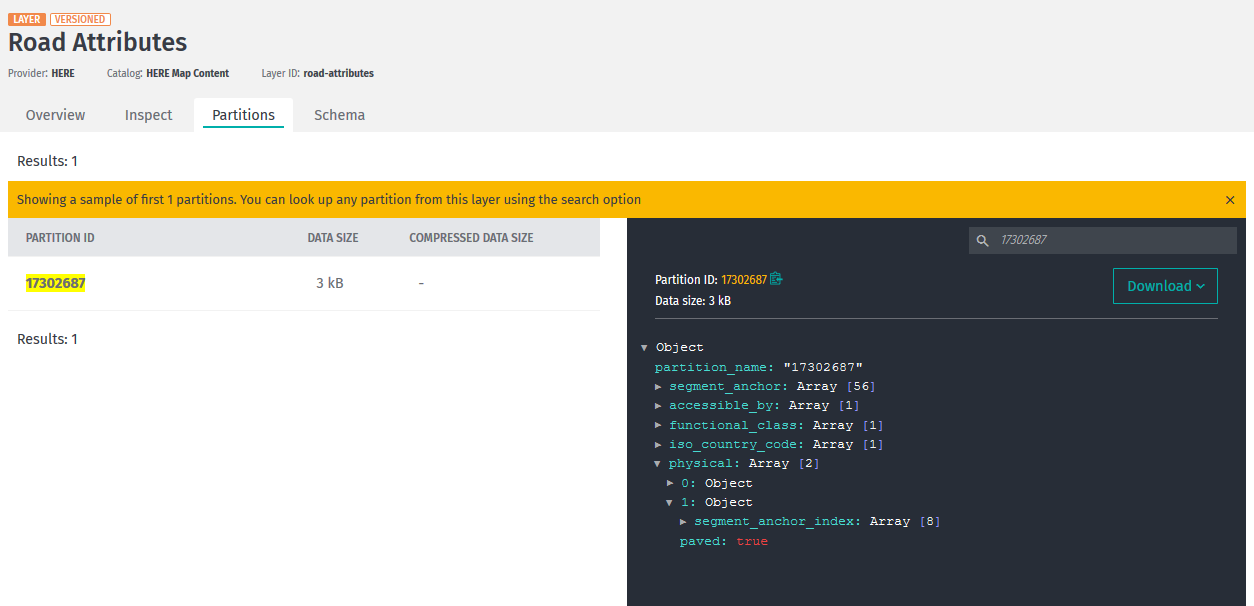

You can inspect this tile in the Topology Attributes layer of HERE Map Content in the portal:

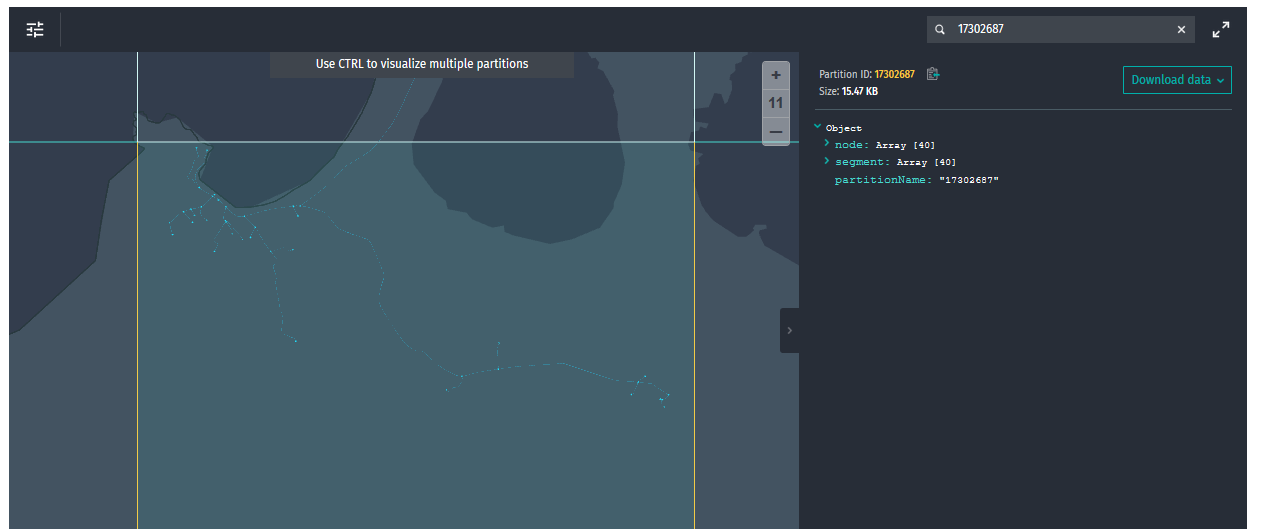

The geometry for the partition is in the Road Topology & Geometry layer.

Create the output catalog

The output catalog contains a single GeoJSON layer. The following code snippet shows the configuration file. Replace $YOUR_CATALOG_ID with your own unique ID such as $YOUR_USERNAME-road-attr-walkthru.

{
  "id": "{{YOUR_CATALOG_ID}}",
  "name": "Paved and unpaved road segments from Road Attribute Walkthrough",
  "summary": "Paved and unpaved road segments from Road Attribute Walkthrough",
  "description": "Paved and unpaved road segments from Road Attribute Walkthrough",
  "layers": [
    {
      "id": "roadsegments",
      "name": "roadsegments",
      "summary": "Paved and unpaved road segments",
      "description": "Paved and unpaved road segments",
      "contentType": "application/vnd.geo+json",
      "layerType": "versioned",
      "digest": "sha-1",
      "volume": {
        "volumeType": "durable"
      },
      "partitioning": {
        "scheme": "heretile",
        "tileLevels": [12]
      },
      "coverage": {
                    "adminAreas": [
                      "NZ"
                    ]
                  }

    }
  ]
}

The OLP CLI requires a valid set of HERE credentials to authenticate itself with the Data Services, so verify that the Verify your credentials tutorial returns the expected result.

If you have not already done so, download and unzip the Java and Scala examples and the CLI.
Add the tools/OLP_CLI folder of the unzipped file to your ${PATH}.
Create the catalog with the following command:

olp catalog create $YOUR_CATALOG_ID \
    "Paved and unpaved road segments from Road Attribute Walkthrough" \
    --config output-catalog.json \
    --scope $YOUR_PROJECT_HRN

The CLI returns as follows:

Catalog $YOUR_CATALOG_HRN has been created.

Note

If a billing tag is required in your realm, update the config file by adding the billingTags: ["YOUR_BILLING_TAG"] property to the layer section.

Set up the Maven project

Create the following folder structure for the project:

road-attr-walkthru
└── src
    └── main
        ├── java
        └── scala

You can do this with a single bash command:

mkdir -p road-attr-walkthru/src/main/{java,scala}

The POM for this example is identical to that in the first Maven example, except for its dependencies, repositories, and build sections:

The dependencies are as follows:

<dependency>
    <groupId>com.here.platform.data.client</groupId>
    <artifactId>data-client_${scala.compat.version}</artifactId>
</dependency>
<dependency>
    <groupId>com.here.platform.data.client</groupId>
    <artifactId>data-engine_${scala.compat.version}</artifactId>
</dependency>
<dependency>
    <groupId>com.here.platform.pipeline</groupId>
    <artifactId>pipeline-interface_${scala.compat.version}</artifactId>
</dependency>

<dependency>
    <groupId>com.here.schema.rib</groupId>
    <artifactId>topology-attributes_v2_scala_${scala.compat.version}</artifactId>
</dependency>
<dependency>
    <groupId>com.here.schema.rib</groupId>
    <artifactId>topology-geometry_v2_scala_${scala.compat.version}</artifactId>
</dependency>
<dependency>
    <groupId>org.json4s</groupId>
    <artifactId>json4s-core_${scala.compat.version}</artifactId>
</dependency>
<dependency>
    <groupId>org.json4s</groupId>
    <artifactId>json4s-ast_${scala.compat.version}</artifactId>
</dependency>

<dependency>
    <groupId>com.here.schema.rib</groupId>
    <artifactId>topology-attributes_v2_java</artifactId>
</dependency>
<dependency>
    <groupId>com.here.schema.rib</groupId>
    <artifactId>topology-geometry_v2_java</artifactId>
</dependency>

Since the application uses the Scala bindings from the HERE Map Content schema, you must add the following repositories section to resolve schema artifacts.

<repositories>
    <repository>
        <id>HERE_PLATFORM_ARTIFACT</id>
        <layout>default</layout>
        <url>here+https://artifact.api.platform.here.com/v1/artifact</url>
    </repository>
</repositories>

You also need the following extensions section under build.

<extensions>
    <extension>
        <groupId>com.here.platform.artifact</groupId>
        <artifactId>artifact-wagon</artifactId>
        <version>${artifact.wagon.version}</version>
    </extension>
</extensions>

For more information on the Artifact Service, which resolves schemas, see "Artifact Service" in the Dependency Management documentation.

Implement the application

The respective Scala and Java implementations are as follows:

/*
 * Copyright (c) 2018-2026 HERE Europe B.V.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

import org.apache.pekko.actor.CoordinatedShutdown.UnknownReason
import org.apache.pekko.actor.{ActorSystem, CoordinatedShutdown}
import com.here.hrn.HRN
import com.here.platform.data.client.engine.scaladsl.{DataEngine, WriteEngine}
import com.here.platform.data.client.model.VersionDependency
import com.here.platform.data.client.scaladsl.{DataClient, NewPartition, PublishApi, QueryApi}
import com.here.platform.pipeline.PipelineContext
import com.here.schema.geometry.v2.geometry.LineString
import com.here.schema.rib.v2.common.Reference
import com.here.schema.rib.v2.topology_attributes_partition.TopologyAttributesPartition
import com.here.schema.rib.v2.topology_geometry_partition.TopologyGeometryPartition
import com.typesafe.config.{Config, ConfigFactory, ConfigValueFactory}
import org.json4s.JsonDSL._
import org.json4s.jackson.JsonMethods._

import scala.concurrent._
import scala.concurrent.duration._
import scala.language.postfixOps

object RoadAttrWalkthruScala {

  def main(args: Array[String]): Unit = {

    // Initialize the Pekko Actor System used by the Data Client Library.
    val config: Config = ConfigFactory
      .empty()
      .withValue("here.platform.data-client.endpoint-locator.discovery-service-env",
                 ConfigValueFactory.fromAnyRef("custom"))
      .withValue(
        "here.platform.data-client.endpoint-locator.discovery-service-url",
        ConfigValueFactory.fromAnyRef("https://api-lookup.data.api.platform.here.com")
      )
    implicit lazy val actorSystem: ActorSystem =
      ActorSystem.create("RoadAttrWalkthruScalaExampleApp", config)

    try {
      val pipelineContext = new PipelineContext()

      val hereMapContentHrn = pipelineContext.config.inputCatalogs("hereMapContent")
      val hereMapContentVersion = pipelineContext.job.get.inputCatalogs("hereMapContent").version

      // Choosing a Chatham Islands partition in New Zealand to keep things simple.
      // Feel free to replace this with one or more other partitions of interest.
      val roadAttrPartitionNames = Seq("17302687")

      val outputHrn = pipelineContext.config.outputCatalog

      // Initialize the I/O for the catalog.
      val queryApi = DataClient().queryApi(hereMapContentHrn)
      val readEngine = DataEngine().readEngine(hereMapContentHrn)
      val writeEngine = DataEngine().writeEngine(outputHrn)
      val publishApi = DataClient().publishApi(outputHrn)

      val waitDuration = 60 seconds

      // Retrieve the metadata for the road-attribute partition(s).
      val roadAttrMetadata = Await.result(queryApi.getPartitionsById(hereMapContentVersion,
                                                                     "topology-attributes",
                                                                     roadAttrPartitionNames),
                                          waitDuration)

      roadAttrMetadata.foreach { metadata =>
        // For users using platform.here.com:
        // https://www.here.com/docs/bundle/data-client-library-developer-guide-java-scala/page/client/get-data.html
        // https://www.here.com/docs/bundle/map-content-schema-data-specification/page/topics/roads-layers.html

        // Retrieve the payload for the road-attribute partition and decode its contents.
        val topologyAttributesPartition =
          Await.result(readEngine.get(metadata, TopologyAttributesPartition.parseFrom),
                       waitDuration)

        // For users using platform.here.com:
        // https://developer.here.com/documentation/here-map-content/topics_api/com.here.schema.rib.v2.physicalattribute.html

        // Separate the physical attribute values combinations into those which have paved=true, and those which have paved=false.
        val (paved, unpaved) = topologyAttributesPartition.physical.partition(_.paved)

        // For users using platform.here.com:
        // https://developer.here.com/documentation/here-map-content/topics/anchor.html

        // Get the segment anchor indices for the paved and unpaved segments.
        val pavedSegmentAnchorIndices = paved.flatMap(_.segmentAnchorIndex)
        val unpavedSegmentAnchorIndices = unpaved.flatMap(_.segmentAnchorIndex)

        // Follow the segment anchor references to get the name of the partition(s)
        // which contain the actual segment geometry within the topology-geometry layer.
        val pavedTopologyPartitions =
          getTopologyPartitionNames(pavedSegmentAnchorIndices, topologyAttributesPartition)
        val unpavedTopologyPartitions =
          getTopologyPartitionNames(unpavedSegmentAnchorIndices, topologyAttributesPartition)

        // Retrieve the metadata for the referenced topology-geometry partitions.
        val topoMetadata = Await.result(
          queryApi.getPartitionsById(hereMapContentVersion,
                                     "topology-geometry",
                                     (pavedTopologyPartitions ++ unpavedTopologyPartitions).toSeq),
          waitDuration)

        // Retrieve the payloads and decode the content of the referenced topology-geometry partitions.
        // We need to do this because it is not guaranteed that every segment anchor refers to a segment
        // that is in the topology-geometry partition that has the same name as the topology-attributes
        // partition which contains the segment anchor.
        val topoPartitionsByName: Map[String, TopologyGeometryPartition] = topoMetadata.map {
          topoMeta =>
            topoMeta.partition -> Await.result(readEngine.get(topoMeta,
                                                              TopologyGeometryPartition.parseFrom),
                                               waitDuration)
        }.toMap

        // Follow the segment anchor references to the decoded topology-geometry content to get the geometry
        // for each paved and unpaved segment.
        val pavedGeo =
          getGeo(pavedSegmentAnchorIndices, topologyAttributesPartition, topoPartitionsByName)
        val unpavedGeo =
          getGeo(unpavedSegmentAnchorIndices, topologyAttributesPartition, topoPartitionsByName)

        // Write out the decoded geometry as GeoJSON.
        publishGeoJson(pavedGeo,
                       unpavedGeo,
                       writeEngine,
                       publishApi,
                       queryApi,
                       hereMapContentHrn,
                       hereMapContentVersion,
                       waitDuration)
      }

    } finally {
      Await.result(CoordinatedShutdown(actorSystem).run(UnknownReason), Duration.Inf)
    }
  }

  // Gets the segment references for a given segment anchor index in a topology attributes partition.
  private def getSegmentRefs(topologyAttributesPartition: TopologyAttributesPartition,
                             segmentAnchorIdx: Int): Iterable[Reference] =
    topologyAttributesPartition
      .segmentAnchor(segmentAnchorIdx)
      .orientedSegmentRef
      .flatMap(_.segmentRef)

  // Gets the topology partition names referenced by the given segment anchor indices.
  private def getTopologyPartitionNames(
      segmentAnchorIndices: Iterable[Int],
      topologyAttributesPartition: TopologyAttributesPartition): Set[String] =
    segmentAnchorIndices.flatMap { idx =>
      getSegmentRefs(topologyAttributesPartition, idx).map(_.partitionName)
    }.toSet

  // Follow the segment anchor references to the decoded topology-geometry content to get the geometry
  // for each paved and unpaved segment.
  private def getGeo(segmentAnchorIndices: Iterable[Int],
                     topologyAttributesPartition: TopologyAttributesPartition,
                     topoPartitionsByName: Map[String, TopologyGeometryPartition])
    : Map[String, Iterable[LineString]] =
    segmentAnchorIndices
      .flatMap { idx =>
        // Follow the segment anchor reference to get the corresponding topology-geometry partition.
        getSegmentRefs(topologyAttributesPartition, idx).flatMap { ref =>
          topoPartitionsByName(ref.partitionName).segment

          // For each segment anchor reference, get the segment from topology-geometry which matches its identifier.
            .filter(_.identifier == ref.identifier)
            .flatMap(_.geometry)
            .map(lineString => ref.partitionName -> lineString)
        }
      }
      // Group the LineStrings under their respective topology partitions.
      .groupBy(_._1)
      .map(pair => pair._1 -> pair._2.map(_._2))

  // Formats paved and unpaved LineStrings as GeoJSON.
  private def makeGeoJsonFeature(paved: Boolean)(lineString: LineString) = {

    def makeGeoCollection[T](geometries: Iterable[T], f: T => String) =
      s"[${geometries.map(f).mkString(",")}]"

    def makeGeoCoord(point: com.here.schema.geometry.v2.geometry.Point) =
      s"[${point.longitude}, ${point.latitude}]"

    def makeGeoJsonLineString(lineString: LineString) =
      ("type" -> "LineString") ~
        ("coordinates" -> parse(makeGeoCollection(lineString.point, makeGeoCoord)))

    // Give paved and unpaved segments tooltips indicating paved or unpaved, and color
    // them green and red, respectively.
    ("type" -> "Feature") ~
      ("properties" -> ("tooltip" -> (if (paved) "paved" else "unpaved")) ~
        ("width" -> 3.0) ~ ("style" -> ("color" -> (if (paved) "#02F93E" else "#FF3333")))) ~
      ("geometry" -> makeGeoJsonLineString(lineString))
  }

  // Write out the decoded geometry as GeoJSON.
  private def publishGeoJson(pavedGeo: Map[String, Iterable[LineString]],
                             unpavedGeo: Map[String, Iterable[LineString]],
                             writeEngine: WriteEngine,
                             publishApi: PublishApi,
                             queryApi: QueryApi,
                             inputHrn: HRN,
                             inputVersion: Long,
                             waitDuration: Duration): Unit = {
    val layerId = "roadsegments";
    val commitPartitions = (pavedGeo.keySet ++ unpavedGeo.keySet).map { key =>
      val pavedGeoJson = pavedGeo.getOrElse(key, Nil).map(makeGeoJsonFeature(paved = true))
      val unpavedGeoJson = unpavedGeo.getOrElse(key, Nil).map(makeGeoJsonFeature(paved = false))
      val geoJsonString =
        compact(
          render(
            ("type" -> "FeatureCollection") ~ ("features" -> (pavedGeoJson ++ unpavedGeoJson))))

      val newPartition = NewPartition(
        partition = key,
        layer = layerId,
        data = NewPartition.ByteArrayData(geoJsonString.getBytes("UTF-8"))
      )
      Await.result(writeEngine.put(newPartition), waitDuration)
    }

    // Write the HERE Map Content catalog's dependencies as indirect dependencies of
    // our output catalog, and the HERE Map Content catalog itself as a direct
    // dependency. This is good practice so that consumers of this catalog can
    // perform dependency analysis if needed, for example, when scheduling downstream
    // pipelines, and performing incremental processing.
    val dependencies = Await
      .result(queryApi.getVersion(inputVersion), waitDuration)
      .dependencies
      .map(_.copy(direct = false)) ++ Seq(VersionDependency(inputHrn, inputVersion, direct = true))

    val baseVersion = Await.result(publishApi.getBaseVersion(), waitDuration)
    Await.result(publishApi.publishBatch2(baseVersion,
                                          Some(Seq(layerId)),
                                          dependencies,
                                          commitPartitions.iterator),
                 waitDuration)
  }
}

/*
 * Copyright (c) 2018-2026 HERE Europe B.V.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

import com.here.hrn.HRN;
import com.here.platform.data.client.engine.javadsl.DataEngine;
import com.here.platform.data.client.engine.javadsl.ReadEngine;
import com.here.platform.data.client.engine.javadsl.WriteEngine;
import com.here.platform.data.client.javadsl.*;
import com.here.platform.data.client.model.VersionDependency;
import com.here.platform.pipeline.PipelineContext;
import com.here.schema.geometry.v2.GeometryOuterClass.LineString;
import com.here.schema.rib.v2.Anchor;
import com.here.schema.rib.v2.Common;
import com.here.schema.rib.v2.RoadAttributes;
import com.here.schema.rib.v2.TopologyAttributesPartitionOuterClass.TopologyAttributesPartition;
import com.here.schema.rib.v2.TopologyGeometry;
import com.here.schema.rib.v2.TopologyGeometryPartitionOuterClass.TopologyGeometryPartition;
import com.typesafe.config.Config;
import com.typesafe.config.ConfigFactory;
import com.typesafe.config.ConfigValueFactory;
import java.util.*;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;
import java.util.stream.Collectors;
import java.util.stream.Stream;
import org.apache.pekko.actor.ActorSystem;
import org.apache.pekko.actor.CoordinatedShutdown;
import org.apache.pekko.japi.Pair;

public class RoadAttrWalkthruJava {

  public static void main(String[] args)
      throws InterruptedException, ExecutionException, TimeoutException {

    // Initialize the Pekko Actor System used by the Data Client Library.
    Config config = ConfigFactory.empty();
    config =
        config.withValue(
            "here.platform.data-client.endpoint-locator.discovery-service-env",
            ConfigValueFactory.fromAnyRef("custom"));
    config =
        config.withValue(
            "here.platform.data-client.endpoint-locator.discovery-service-url",
            ConfigValueFactory.fromAnyRef("https://api-lookup.data.api.platform.here.com"));

    ActorSystem actorSystem = ActorSystem.create("RoadAttrWalkthruJavaExampleApp", config);

    try {
      PipelineContext pipelineContext = new PipelineContext();

      HRN hereMapContentHrn = pipelineContext.config().getInputCatalogs().get("hereMapContent");
      long hereMapContentVersion =
          pipelineContext.getJob().get().getInputCatalogs().get("hereMapContent").version();

      // Choosing a Chatham Islands partition in New Zealand to keep things simple.
      List<String> roadAttrPartitionNames = Collections.singletonList("17302687");

      HRN outputHrn = pipelineContext.config().getOutputCatalog();

      // Initialize the I/O for the catalog.
      QueryApi queryApi = DataClient.get(actorSystem).queryApi(hereMapContentHrn);
      ReadEngine readEngine = DataEngine.get(actorSystem).readEngine(hereMapContentHrn);
      WriteEngine writeEngine = DataEngine.get(actorSystem).writeEngine(outputHrn);
      PublishApi publishApi = DataClient.get(actorSystem).publishApi(outputHrn);

      // Retrieve the metadata for the road-attribute partition(s).
      List<Partition> roadAttrMetadata =
          queryApi
              .getPartitionsById(
                  hereMapContentVersion,
                  "topology-attributes",
                  roadAttrPartitionNames,
                  Collections.emptySet())
              .toCompletableFuture()
              .get(60, TimeUnit.SECONDS);

      roadAttrMetadata.forEach(
          metadata -> {
            // For users using platform.here.com:
            // https://www.here.com/docs/bundle/data-client-library-developer-guide-java-scala/page/client/get-data.html
            // https://www.here.com/docs/bundle/map-content-schema-data-specification/page/topics/roads-layers.html

            // Retrieve the payload for the road-attribute partition and decode its contents.
            TopologyAttributesPartition topologyAttributesPartition =
                readEngine
                    .get(metadata, TopologyAttributesPartition::parseFrom)
                    .toCompletableFuture()
                    .join();

            // For users using platform.here.com:
            // https://developer.here.com/documentation/here-map-content/topics_api/com.here.schema.rib.v2.physicalattribute.html

            // Separate the physical attribute values combinations into those which have paved=true,
            // and those which have paved=false.
            Map<Boolean, List<RoadAttributes.PhysicalAttribute>> attrsByPaved =
                topologyAttributesPartition
                    .getPhysicalList()
                    .stream()
                    .collect(Collectors.partitioningBy(RoadAttributes.PhysicalAttribute::getPaved));

            List<RoadAttributes.PhysicalAttribute> paved = attrsByPaved.get(true);
            List<RoadAttributes.PhysicalAttribute> unpaved = attrsByPaved.get(false);

            // For users using platform.here.com:
            // https://developer.here.com/documentation/here-map-content/topics/anchor.html
            // Get the segment anchor indices for the paved and unpaved segments.
            List<Integer> pavedSegmentAnchorIndices =
                paved
                    .stream()
                    .flatMap(attr -> attr.getSegmentAnchorIndexList().stream())
                    .collect(Collectors.toList());
            List<Integer> unpavedSegmentAnchorIndices =
                unpaved
                    .stream()
                    .flatMap(attr -> attr.getSegmentAnchorIndexList().stream())
                    .collect(Collectors.toList());

            // Follow the segment anchor references to get the name of the partition(s)
            // which contain the actual segment geometry within the topology-geometry layer.
            Set<String> pavedTopologyPartitions =
                getTopologyPartitionNames(topologyAttributesPartition, pavedSegmentAnchorIndices);
            Set<String> unpavedTopologyPartitions =
                getTopologyPartitionNames(topologyAttributesPartition, unpavedSegmentAnchorIndices);

            // Retrieve the metadata for the referenced topology-geometry partitions.
            Set<String> allTopoPartitions =
                Stream.concat(pavedTopologyPartitions.stream(), unpavedTopologyPartitions.stream())
                    .collect(Collectors.toSet());
            List<Partition> topoMetadata =
                queryApi
                    .getPartitionsById(
                        hereMapContentVersion,
                        "topology-geometry",
                        new ArrayList<>(allTopoPartitions),
                        Collections.emptySet())
                    .toCompletableFuture()
                    .join();

            // Retrieve the payloads and decode the content of the referenced topology-geometry
            // partitions.
            Map<String, TopologyGeometryPartition> topoPartitionsByName =
                topoMetadata
                    .stream()
                    .map(
                        topoMeta ->
                            new Pair<>(
                                topoMeta.getPartition(),
                                readEngine
                                    .get(topoMeta, TopologyGeometryPartition::parseFrom)
                                    .toCompletableFuture()
                                    .join()))
                    .collect(Collectors.toMap(Pair::first, Pair::second));

            // Follow the segment anchor references to the decoded topology-geometry content to get
            // the geometry
            // for each paved and unpaved segment.
            Map<String, List<LineString>> pavedGeo =
                getGeo(
                    topoPartitionsByName, topologyAttributesPartition, pavedSegmentAnchorIndices);
            Map<String, List<LineString>> unpavedGeo =
                getGeo(
                    topoPartitionsByName, topologyAttributesPartition, unpavedSegmentAnchorIndices);

            // Write out the decoded geometry as GeoJSON.
            publishGeoJson(
                pavedGeo,
                unpavedGeo,
                writeEngine,
                publishApi,
                queryApi,
                hereMapContentHrn,
                hereMapContentVersion);
          });

    } finally {
      shutdownActorSystem(actorSystem);
    }
  }

  private static void shutdownActorSystem(ActorSystem actorSystem) {
    CoordinatedShutdown.get(actorSystem)
        .runAll(CoordinatedShutdown.unknownReason())
        .toCompletableFuture()
        .join();
  }

  // Gets the segment references for a given segment anchor index in a topology attributes
  // partition.
  private static Stream<Common.Reference> getSegmentRefs(
      TopologyAttributesPartition topologyAttributesPartition, Integer segmentAnchorIdx) {
    return topologyAttributesPartition
        .getSegmentAnchor(segmentAnchorIdx)
        .getOrientedSegmentRefList()
        .stream()
        .map(Anchor.SegmentAnchor.OrientedSegmentReference::getSegmentRef);
  }

  // Follow the segment anchor references to get the name of the partition(s)
  // which contain the actual segment geometry within the topology-geometry layer.
  // We need to do this because it is not guaranteed that every segment anchor refers to a segment
  // that is in the topology-geometry partition that has the same name as the topology-attributes
  // partition which contains the segment anchor.
  private static Set<String> getTopologyPartitionNames(
      TopologyAttributesPartition topologyAttributesPartition, List<Integer> segmentAnchorIndices) {
    return segmentAnchorIndices
        .stream()
        .flatMap(idx -> getSegmentRefs(topologyAttributesPartition, idx))
        .map(Common.Reference::getPartitionName)
        .collect(Collectors.toSet());
  }

  // Follow the segment anchor references to the decoded topology-geometry content to get the
  // geometry
  // for each paved and unpaved segment.
  private static Map<String, List<LineString>> getGeo(
      Map<String, TopologyGeometryPartition> topoPartitionsByName,
      TopologyAttributesPartition topologyAttributesPartition,
      List<Integer> segmentAnchorIndices) {

    return segmentAnchorIndices
        .stream()

        // Follow the segment anchor reference to get the corresponding topology-geometry partition.
        .flatMap(idx -> getSegmentRefs(topologyAttributesPartition, idx))
        .flatMap(
            ref ->
                topoPartitionsByName
                    .get(ref.getPartitionName())
                    .getSegmentList()
                    .stream()

                    // For each segment anchor reference, get the segment from
                    // topology-geometry which matches its identifier.
                    .filter(seg -> seg.getIdentifier().equals(ref.getIdentifier()))
                    .map(TopologyGeometry.Segment::getGeometry)
                    .map(lineString -> new Pair<>(ref.getPartitionName(), lineString)))

        // Group the LineStrings under their respective topology partitions.
        .collect(Collectors.groupingBy(Pair::first))
        .entrySet()
        .stream()
        .map(
            pair ->
                new Pair<>(
                    pair.getKey(),
                    pair.getValue().stream().map(Pair::second).collect(Collectors.toList())))
        .collect(Collectors.toMap(Pair::first, Pair::second));
  }

  // Formats paved and unpaved LineStrings as GeoJSON.
  private static String makeGeoJsonFeature(boolean paved, LineString lineString) {
    StringJoiner coordJoiner = new StringJoiner(",", "[", "]");
    List<String> pointsAsString =
        lineString
            .getPointList()
            .stream()
            .map(point -> "[" + point.getLongitude() + ", " + point.getLatitude() + "]")
            .collect(Collectors.toList());
    pointsAsString.forEach(coordJoiner::add);

    // Give paved and unpaved segments tooltips indicating paved or unpaved, and color
    // them green and red, respectively.
    String tooltip = paved ? "paved" : "unpaved";
    String color = paved ? "\"#02F93E\"" : "\"#FF3333\"";

    return "{ \"type\": \"Feature\", \"geometry\": "
        + "{ \"type\": \"LineString\", \"coordinates\": "
        + coordJoiner.toString()
        + "}"
        + ", \"properties\": { \"tooltip\": \""
        + tooltip
        + "\""
        + ", \"width\" : 3.0"
        + ", \"style\": { \"color\": "
        + color
        + "}"
        + "} }";
  }

  // Write out the decoded geometry as GeoJSON.
  private static void publishGeoJson(
      Map<String, List<LineString>> pavedGeo,
      Map<String, List<LineString>> unpavedGeo,
      WriteEngine writeEngine,
      PublishApi publishApi,
      QueryApi queryApi,
      HRN inputHrn,
      Long inputVersion) {
    Set<String> allGeoKeys =
        Stream.concat(pavedGeo.keySet().stream(), unpavedGeo.keySet().stream())
            .collect(Collectors.toSet());
    String layerId = "roadsegments";
    List<CommitPartition> commitPartitions =
        allGeoKeys
            .stream()
            .map(
                key -> {
                  List<String> pavedGeoJson =
                      pavedGeo
                          .getOrDefault(key, Collections.emptyList())
                          .stream()
                          .map(lineString -> makeGeoJsonFeature(true, lineString))
                          .collect(Collectors.toList());
                  List<String> unpavedGeoJson =
                      unpavedGeo
                          .getOrDefault(key, Collections.emptyList())
                          .stream()
                          .map(lineString -> makeGeoJsonFeature(false, lineString))
                          .collect(Collectors.toList());

                  List<String> allGeoJson =
                      Stream.concat(pavedGeoJson.stream(), unpavedGeoJson.stream())
                          .collect(Collectors.toList());

                  String geoJsonString =
                      allGeoJson
                          .stream()
                          .collect(
                              Collectors.joining(
                                  ",", "{ \"type\": \"FeatureCollection\", \"features\": [", "]}"));

                  NewPartition newPartition =
                      new NewPartition.Builder()
                          .withPartition(key)
                          .withLayer(layerId)
                          .withData(geoJsonString.getBytes())
                          .build();

                  return writeEngine.put(newPartition).toCompletableFuture().join();
                })
            .collect(Collectors.toList());

    // Write the HERE Map Content catalog's dependencies as indirect dependencies of
    // our output catalog, and the HERE Map Content catalog itself as a direct
    // dependency. This is good practice so that consumers of this catalog can
    // perform dependency analysis if needed, for example, when scheduling downstream
    // pipelines, and performing incremental processing.
    List<VersionDependency> dependencies =
        queryApi
            .getVersion(inputVersion)
            .toCompletableFuture()
            .join()
            .getDependencies()
            .stream()
            .map(dep -> new VersionDependency(dep.hrn(), dep.version(), false))
            .collect(Collectors.toList());
    dependencies.add(new VersionDependency(inputHrn, inputVersion, true));

    OptionalLong baseVersion = publishApi.getBaseVersion().toCompletableFuture().join();
    publishApi
        .publishBatch2(
            baseVersion,
            Optional.of(Collections.singletonList(layerId)),
            dependencies,
            commitPartitions.iterator())
        .toCompletableFuture()
        .join();
  }
}

Configure the application

The pipeline configuration files for the application are as follows:

The pipeline-config.conf file declares an HRN for each input and output catalog required by the application.
Replace $YOUR_CATALOG_HRN with the HRN of the output catalog you created above.

pipeline.config {

  output-catalog {hrn = "{{YOUR_CATALOG_HRN}}"}

  input-catalogs {
    hereMapContent {hrn = "hrn:here:data::olp-here:rib-2"}
  }
}

In this tutorial, a public catalog is used - HERE Map Content Catalog. The catalog should be linked to your project first to be used within the project. To do this, replace $YOUR_PROJECT_HRN the placeholder and execute the following command:

olp project resource link `$YOUR_PROJECT_HRN` hrn:here:data::olp-here:rib-2

If your command is successful, the CLI returns the following message:

Project resource hrn:here:data::olp-here:rib-2 has been linked.

This pipeline-job.conf file declares the version for each input and output catalog required by the application.

pipeline.job.catalog-versions {

  output-catalog {base-version = -1}

  input-catalogs {
    hereMapContent {
      processing-type = "reprocess"
      version = 8185
    }
  }
}

For more information on pipeline configuration, refer to the Pipelines Developer Guide.

Run the application

To run the application locally, execute the following command:

mvn compile exec:exec \
    -Dexec.args="--add-opens=java.base/sun.nio.ch=ALL-UNNAMED \
    -cp %classpath \
    -Dpipeline-config.file=pipeline-config.conf \
    -Dpipeline-job.file=pipeline-job.conf \
    -Dhere.platform.data-client.request-signer.credentials.here-account.here-token-scope=$YOUR_PROJECT_HRN \
    -Dspark.master="local[*]" RoadAttrWalkthruScala"

mvn compile exec:exec \
    -Dexec.args="--add-opens=java.base/sun.nio.ch=ALL-UNNAMED \
    -cp %classpath \
    -Dpipeline-config.file=pipeline-config.conf \
    -Dpipeline-job.file=pipeline-job.conf \
    -Dhere.platform.data-client.request-signer.credentials.here-account.here-token-scope=$YOUR_PROJECT_HRN \
    -Dspark.master="local[*]" RoadAttrWalkthruJava"

Inspect the output

After running the application, inspect your output catalog as follows:

Enter "17302687" into the search box of the Inspect tab of the catalog's roadsegments layer
Click on the partition in the map to have it rendered as in the image below.

Further information

To ensure deterministic results in this tutorial, the version of the HERE Map Content input catalog is static. But you can also use getLatestVersion in the application as shown in Verify your credentials and access a catalog, remove the code extracting catalog version from the PipelineContext, and remove -Dpipeline-job.file=pipeline-job.conf from the command line to run the application locally.

You can try running this job in a pipeline. For more information on how to do this, refer to the Pipeline commands in the OLP CLI Developer Guide. Note that this standalone application can be run in batch in a pipeline, although it does not involve Spark.

Updated 21 days ago
