Controlled Access vs Limited Access

Difference Between Controlled Access and Limited Access Roads
=============================================================

Summary
=======

Customers often encounter confusion when interpreting the difference between Controlled Access and Limited Access road attributes. This article provides a clear explanation and practical guidance, especially for EMEA.

Applies To
==========

- HERE Map Data / Attributes
- Road classification and routing logic
- EMEA and global data interpretation

Controlled Access
=================

Controlled Access identifies roads with restricted entry and exit points, designed to support uninterrupted, high-speed traffic flow.

Examples include motorways in Europe and interstate/freeways in the US.

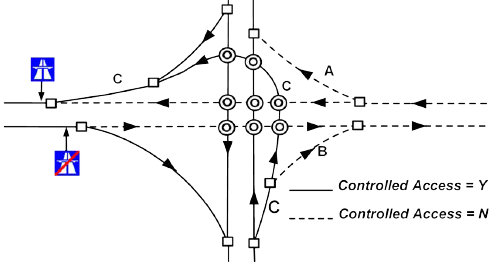

Figure 1: Controlled Access road example

Limited Access
==============

Limited Access indicates high-speed roads where access is regulated, typically via ramps or controlled connections.

These roads are often separately digitized carriageways.

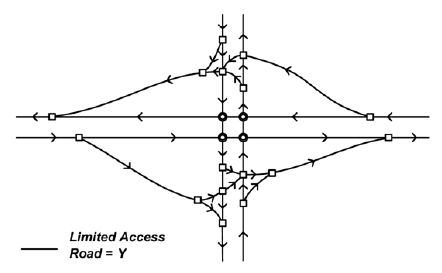

Figure 2: Limited Access road example

Key Differences
===============

Controlled Access = strict restriction (motorways).
Limited Access = broader category including additional high-speed roads.

Regional Interpretation (EMEA)
==============================

Motorways: Controlled Access + Limited Access.
Non-motorways: typically not Controlled Access, but may be Limited Access if separately digitized.
