Matrix v8: Postman + curl examples - apikey authentication

---

Matrix v8: Postman and cURL Examples
====================================

Issue
-----

Users may experience difficulties calculating a Matrix route using an API key because it is unclear:

When HTTP redirection should be enabled or disabled
How to correctly use the statusUrl and resultUrl returned in the response

---

Resolution
----------

Use the attached Postman collection Matrix8_All.postman_collection.json to run and validate Matrix v8 requests.

Postman Procedure

1. Submit the matrix request

   Run the request: 2x5_submit
   2. Check request status

   From the 2x5_submit response, copy the value of statusUrl
   Replace the request URL in 2x5_status with this value
   Keep the apikey parameter unchanged

   Important:

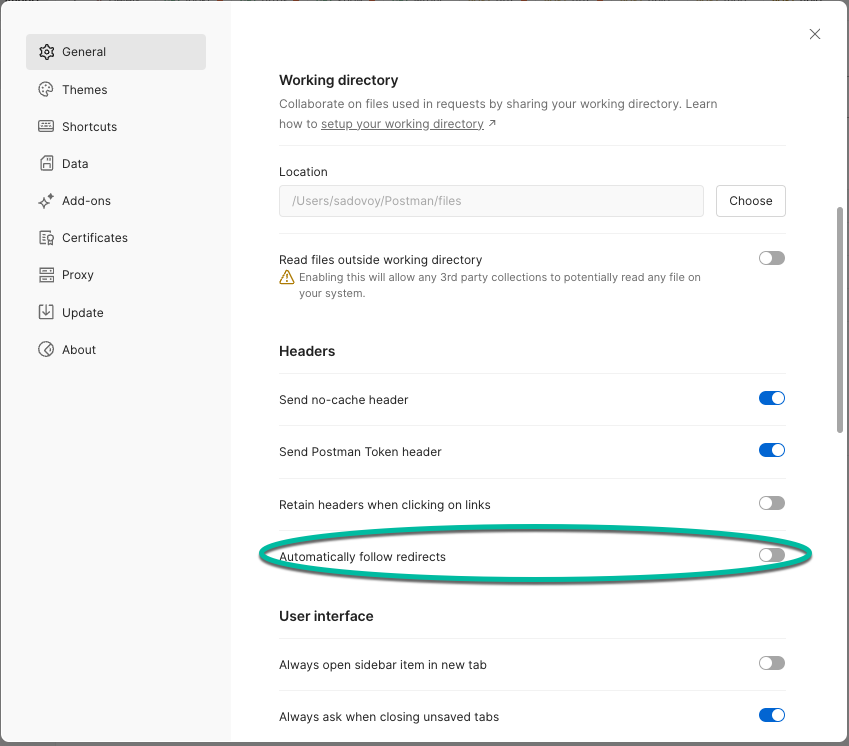

   Before running this request, disable HTTP redirection in Postman settings (see screenshot).



3. Retrieve the result

From the response, copy the value of resultUrl
Replace the request URL in 2x5_result with this value
* Keep the apikey parameter unchanged

Important:

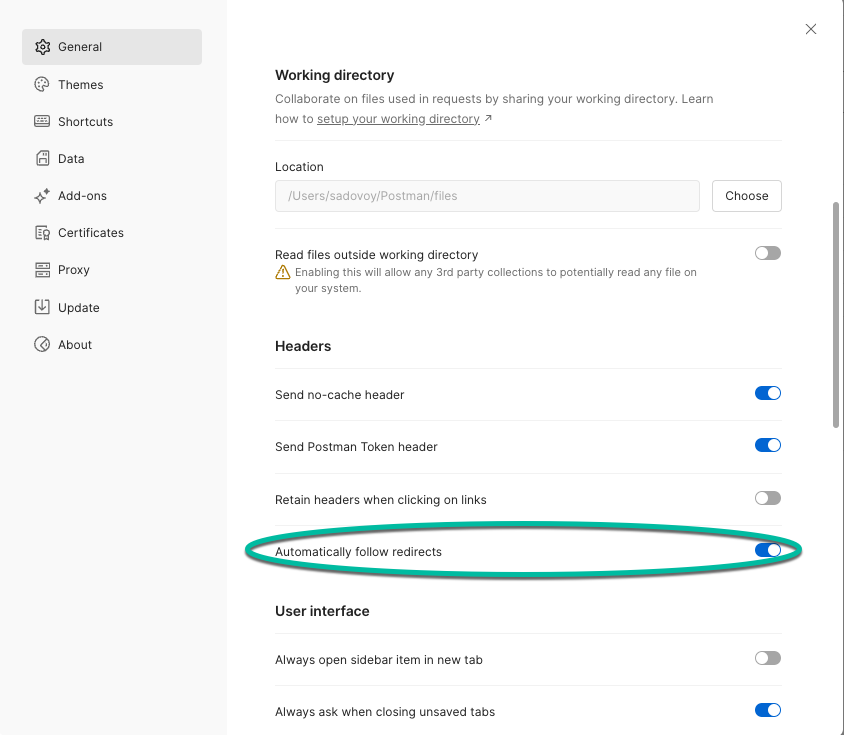

Before running this request, enable HTTP redirection in Postman settings (see screenshot).



---

cURL Examples
-------------

1. Submit matrix request

curl --location --request POST "https://matrix.router.hereapi.com/v8/matrix?async=true&apikey={apikey}"

--header "Content-Type: application/json"

--data-raw '{

"origins":[

{"lat":52.573349,"lng":13.371479},

{"lat":52.54176,"lng":13.511486}

],

"destinations":[

{"lat":52.432371,"lng":13.25283},

{"lat":52.431233,"lng":13.264396},

{"lat":52.426376,"lng":13.294547},

{"lat":52.417155,"lng":13.374063},

{"lat":52.406789,"lng":13.41287}

],

"transportMode":"truck",

"regionDefinition":{"type":"world"}

}'

---

2. Check request status

Use the statusUrl returned in the submit response:

curl --request GET "https://aws-eu-west-1.matrix.router.hereapi.com/v8/matrix/{matrixId}/status?apikey={apikey}"

3. Retrieve the result

Use the resultUrl returned in the response:

curl --location --output out.zip --request GET "https://aws-eu-west-1.matrix.router.hereapi.com/v8/matrix/{matrixId}?apikey={apikey}"

--header "Accept-Encoding: application/gzip"

---

Notes
-----

Replace {apikey} with your actual HERE API key
Replace {matrixId} with the ID returned in the submit response
The result is typically returned as a compressed (.zip) file
Ensure HTTP redirection is configured correctly depending on the step

---

Summary
-------

Submit request → receive statusUrl
2. Check status → receive resultUrl
3. Retrieve result → download the matrix output
