How are Road Toll Costs related in the HERE Map Catalog

At the end of this article, you will be able to understand how the Rules & Regulation Toll Costs layer are related to the Road Navigation Attributes layer in HMC.

Roads - Navigation Attributes

In the Roads-Navigation Attributes layer:

1. Select the INSPECT tab
2. Input a Partition ID (e.g.: 20095970)

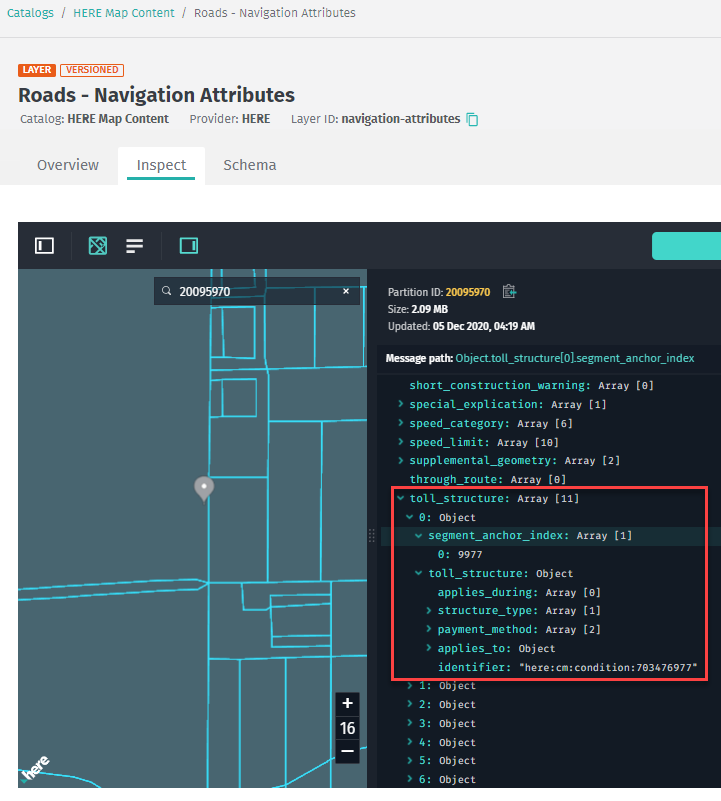

3. Notice the toll structure attribute in the partition:

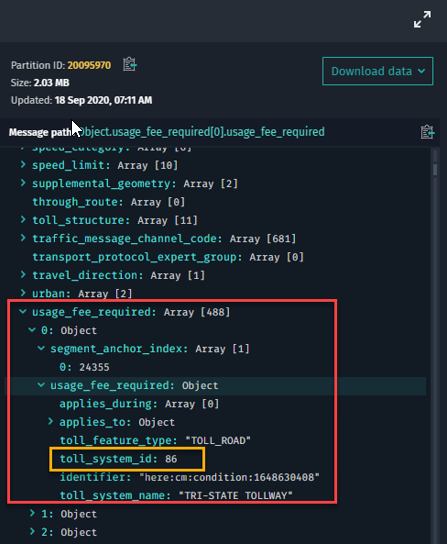

4. Notice the usage_fee_required attribute in the partition. It is here where you will see the toll_system_id. It is this toll_system_id that indicates the related partition in the Rules & Regulations-Toll Cost layer:



Rules & Regulations - Toll Cost

1. Select the INSPECT tab

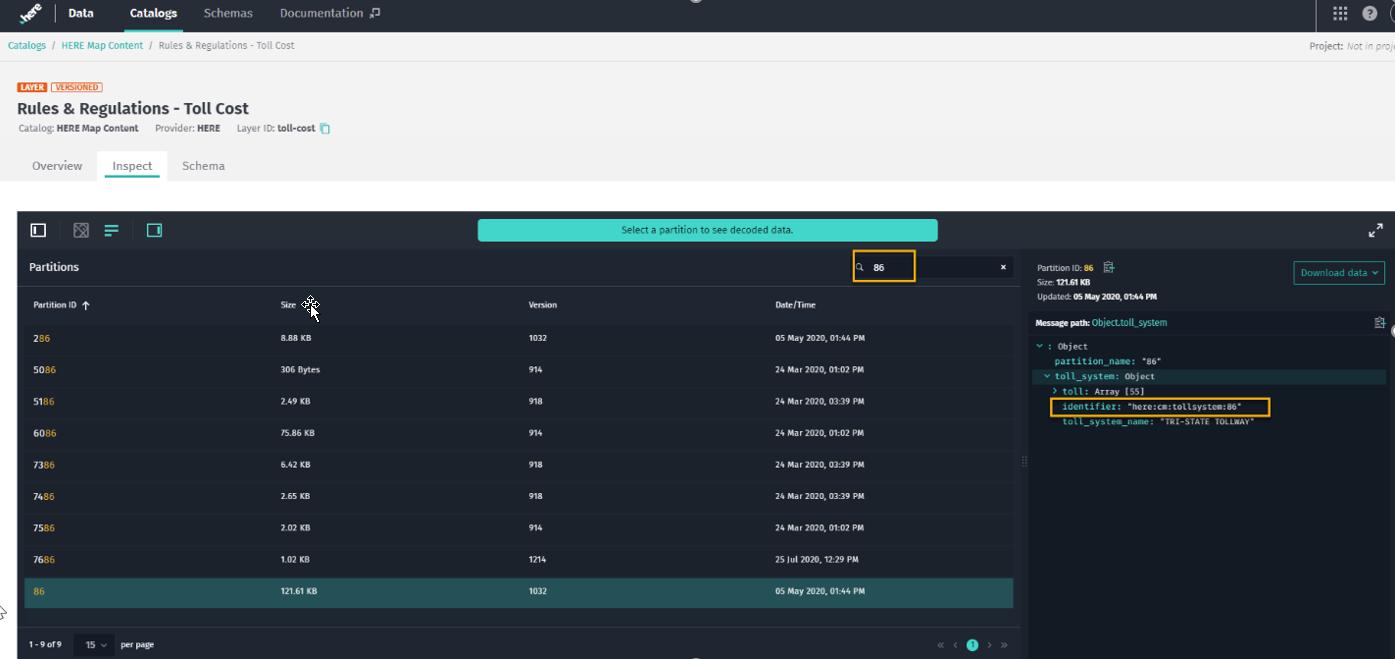

2. Input the toll_system_id (e.g.: 86)

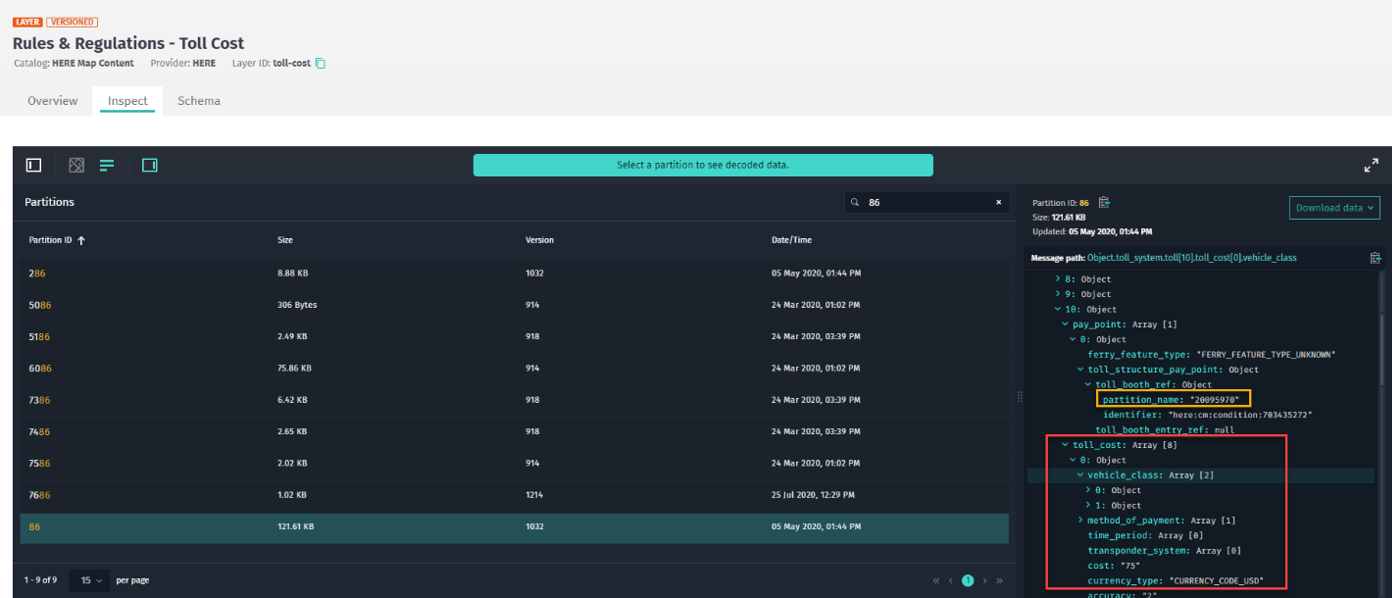

3. Additional details for toll_cost information is indicated:
